TEXAS INSTRUMENTS ADS1602IPFBT 模数转换器, 16 bit, 2.5 MSPS, 单, 4.75 V, 5.25 V, TQFP
The is an Analog-to-digital Converter ADC manufactured on an advanced CMOS process. The high-speed, high-precision, delta-sigma ΔΣ ADC oversampling topology reduces clock jitter sensitivity during the sampling of high-frequency, large amplitude signals by a factor of four over that achieved by Nyquist-rate ADC. Consequently, signal-to-noise ratio SNR is particularly improved. Total harmonic distortion THD is - 101dB and the spurious-free dynamic range SFDR is 103dB. Optimized for power and performance, the ADC dissipates only 530mW while providing a full-scale differential input range of ±3V. Having such a wide input range makes out-of-range signals unlikely. The OTR pin indicates if an analog input out-of-range condition does occur. The differential input signal is measured against the differential reference, which can be generated internally or supplied externally on the ADC. It uses an inherently stable advanced modulator with an on-chip decimation filte
电源电压DC 4.75V min
供电电流 110 mA
电路数 1
针脚数 48
位数 16
耗散功率 530 mW
采样率 2.5 Msps
功耗 530 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 610 mW
输入通道数 1
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 48

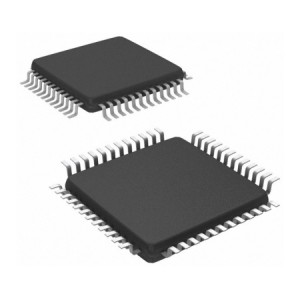

封装 TQFP-48
封装 TQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS1602IPFBT TI 德州仪器 | 当前型号 | 当前型号 |
ADS1602IPFBRG4 德州仪器 | 完全替代 | ADS1602IPFBT和ADS1602IPFBRG4的区别 |
ADS1602IPFBR 德州仪器 | 类似代替 | ADS1602IPFBT和ADS1602IPFBR的区别 |
ADS1602IPFBTG4 德州仪器 | 类似代替 | ADS1602IPFBT和ADS1602IPFBTG4的区别 |
