AD5344BRUZ-REEL7

IC,D/A CONVERTER,QUAD,12Bit,CMOS,TSSOP,28Pin

Product Details

The AD5334/AD5335/AD5336/AD5344 are quad 8-,10-,and 12-bit DACs. They operate from a 2.5 V to 5.5 V supply consuming just 500 µA at 3 V, and feature a power-down mode that further reduces the current to 80 nA. These devices incorporate an on-chip output buffer that can drive the output to both supply rails.

**Product Highlights**

.

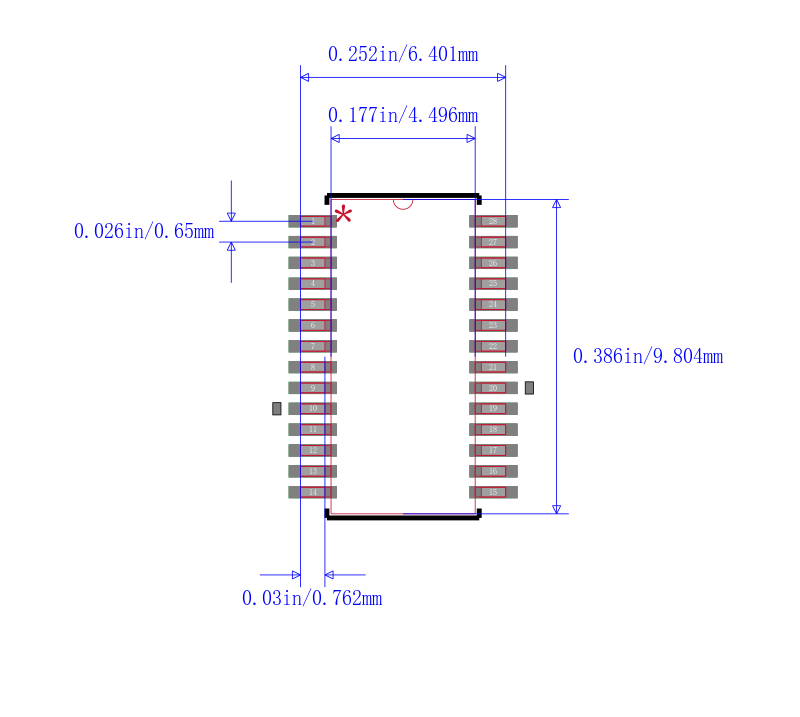

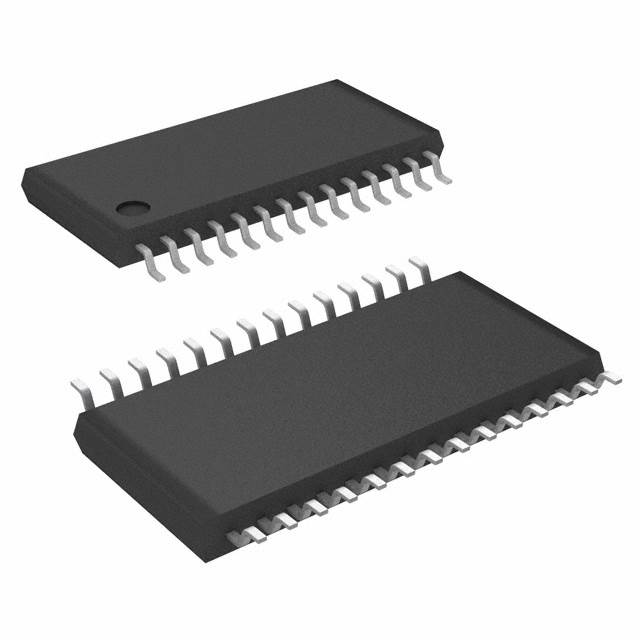

Available in a 28-lead TSSOP package

.

Low power, single supply operation from 2.5 V to 5.5 V supply

.

Consumes 1.5 mW at 3 V and 3 mW at 5 V

.

On-chip ouput buffer can drive output to both supply rails

### Features and Benefits

.

Dual 12-Bit DAC in 28-Lead TSSOP

.

Low Power: 600 µA @ 5 V, 500 µA @ 3 V

.

Power-Down to 200 nA @ 5 V, 80 nA @ 3 V

.

Guaranteed Monotonic by Design

.

Power-On-Reset to Zero Volts

.

Double-Buffered Input Logic

.

Simultaneous Update of DAC Outputs via LDAC pin active low

.

Low Power Parallel Data Interface

.

Temperature Range: -40°C to 105°C
