16位, 500KSPS ,微功耗模拟数字转换器 16-Bit, 500kSPS, microPower Sampling ANALOG-TO-DIGITAL CONVERTER

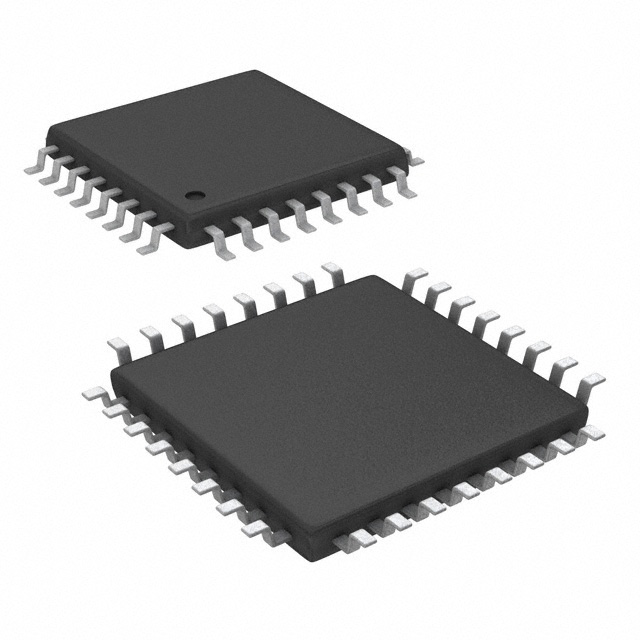

16 位模数转换器 1 输入 1 SAR 32-TQFP(5x5)
得捷:
IC ADC 16BIT SAR 32TQFP
立创商城:
ADS8323YB/250
德州仪器TI:
Pseudo Bipolar, 16-Bit, 500kSPS CMOS Analog-to-Digital Converter
艾睿:
Easily perform calculations on real world physical signals such as light and temperature by using this ADS8323YB/250 ADC from Texas Instruments to convert those analog signals into digital data that a computer can read. Its maximum power dissipation is 125 mW. It has a single-ended and differential input signal. This device is based on SAR architecture. This device&s;s digital interface is parallel. This ADC has a resolution of 16bit. This ADC has an input voltage of ±2.5 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
ADC Single SAR 500ksps 16-bit Parallel 32-Pin TQFP T/R
Chip1Stop:
Single Channel Single ADC SAR 500ksps 16-bit Parallel 32-Pin TQFP T/R
DeviceMart:
IC A/D CONV 16BIT BIPLR 32-TQFP
Win Source:
IC A/D CONV 16BIT BIPLR 32-TQFP
数字逻辑电平 SAR
电源电压DC 4.75V min
供电电流 17.0 mA
电路数 1
位数 16
耗散功率 85 mW
采样率 500 ksps
功耗 85.0 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 125 mW
输入通道数 1
安装方式 Surface Mount
引脚数 32
封装 TQFP-32
封装 TQFP-32
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS8323YB/250 TI 德州仪器 | 当前型号 | 当前型号 |
ADS8323YB/250G4 德州仪器 | 类似代替 | ADS8323YB/250和ADS8323YB/250G4的区别 |
