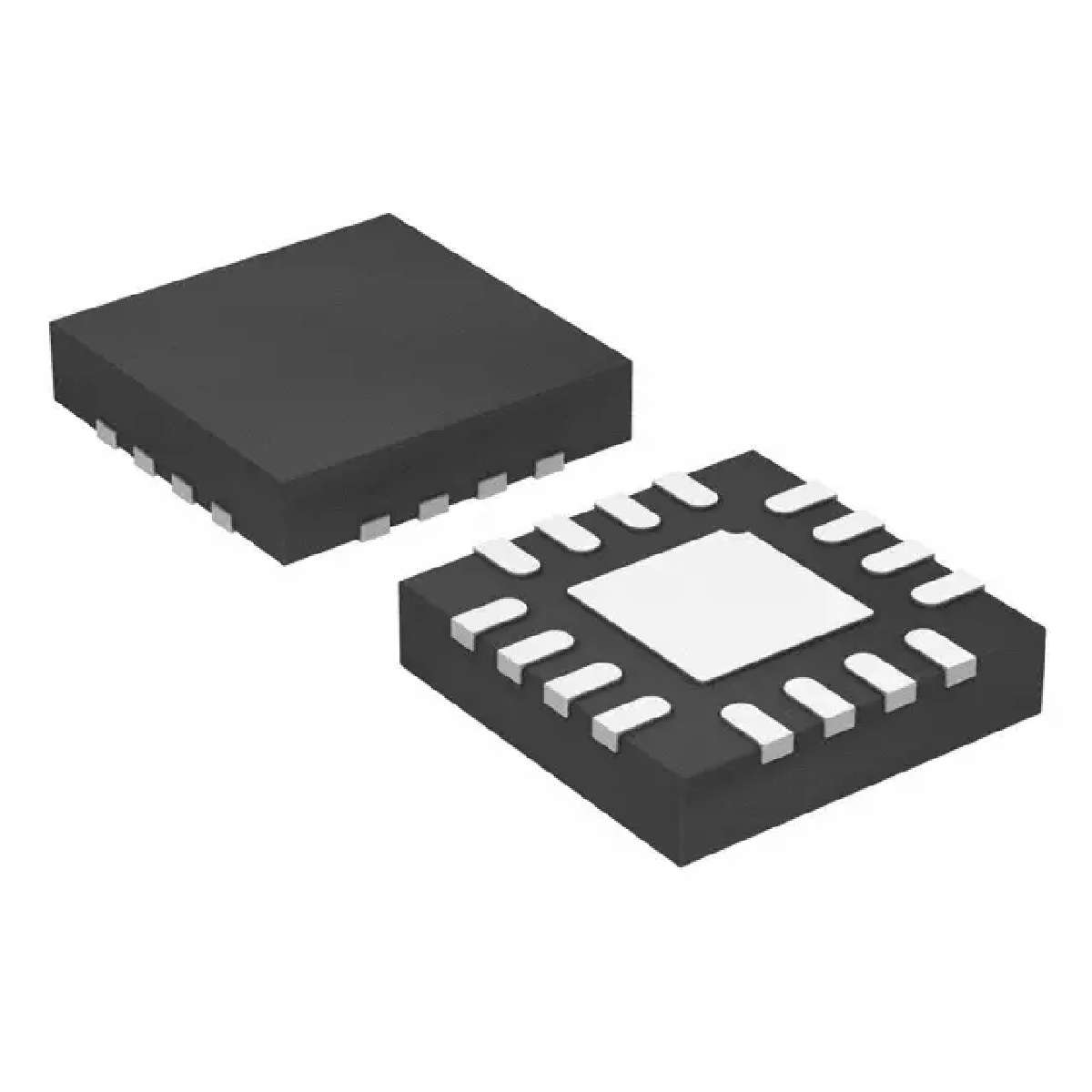

TEXAS INSTRUMENTS ADS8353IRTET 模数转换器, 16 bit, 600 kSPS, 单, 4.5 V, 5.5 V, WQFN
If you require your analog signals to be converted into digital data then this ADC from Texas Instruments is perfect. It has a single-ended and pseudo-differential input signal. This device is based on SAR architecture. Its maximum power dissipation is 50 mW. This device"s digital interface is serial. This ADC has a resolution of 16bit. This ADC has an input voltage of 2.5 V/5V|±1.25V/±2.5V. This ADC has a temperature range of -40 °C to 125 °C.
电源电压DC 4.50V min

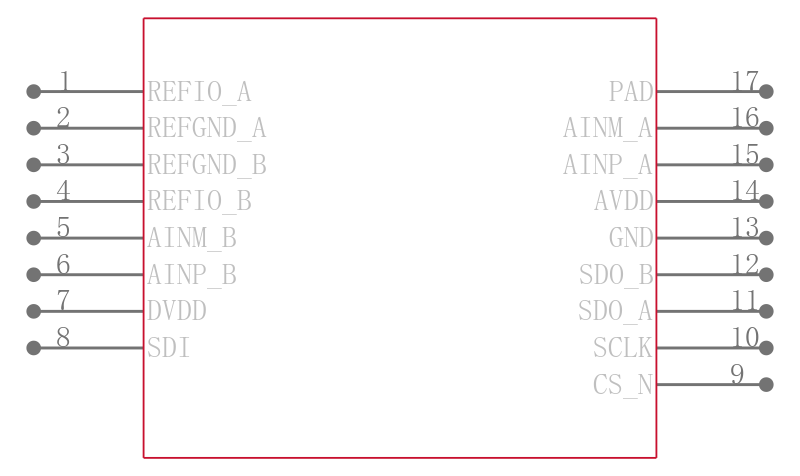

针脚数 16
位数 16
耗散功率 42.5 mW
采样率 600 ksps
功耗 45.0 mW
模数转换数ADC 2
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 50 mW
输入通道数 2
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16

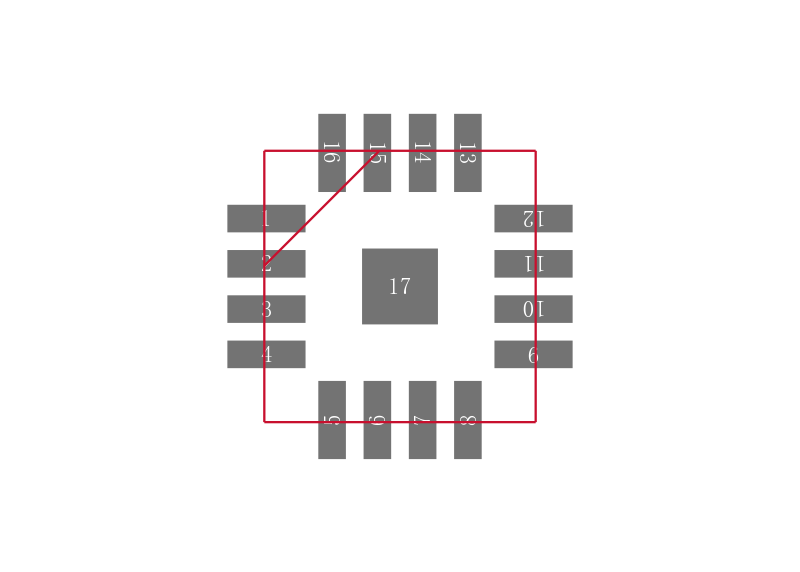

封装 WFQFN-16
封装 WFQFN-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADS8353IRTET TI 德州仪器 | 当前型号 | 当前型号 |
ADS8353IRTER 德州仪器 | 完全替代 | ADS8353IRTET和ADS8353IRTER的区别 |
