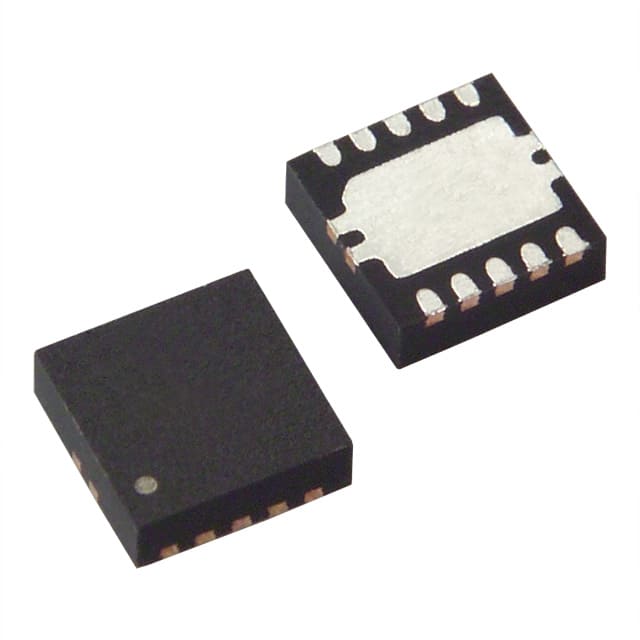

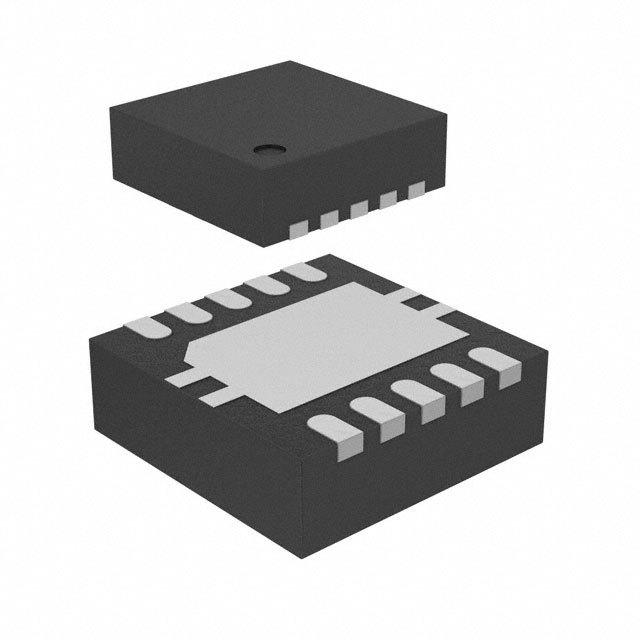

ADS8860IDRCT

具有单端输入、SPI 和菊花链的 16 位、1MSPS、单通道 SAR ADC 10-VSON -40 to 85

The ADS8860 is a 16-bit, 1-MSPS, single-ended input, analog-to-digital converter ADC. The device operates with a 2.5-V to 5-V external reference, offering a wide selection of signal ranges without additional input signal scaling. The reference voltage setting is independent of, and can exceed, the analog supply voltage AVDD.

The device offers an SPI-compatible serial interface that also supports daisy-chain operation for cascading multiple devices. An optional busy-indicator bit makes synchronizing with the digital host easy.

The device supports unipolar single-ended analog inputs in the range of –0.1 V to VREF \\+ 0.1 V.

Device operation is optimized for very low-power operation. Power consumption directly scales with speed. This feature makes the ADS8860 excellent for lower-speed applications.
