ANALOG DEVICES AD9218BSTZ-65 模数转换器, 10 bit, 65 MSPS, 单, 2.7 V, 3.6 V, LQFP
You"ll have no problem converting real world physical signals, such as light and temperature, into a sequence of digital data that a computer can read with this ADC from Analog Devices. Its maximum power dissipation is 390 mW. This device"s digital interface is parallel. It has a differential input signal. This device is based on Pipelined architecture. This ADC has a resolution of 10bit. This ADC has an input voltage of 1 Vp-p/2Vp-p. This ADC has a temperature range of -40 °C to 85 °C.
数字逻辑电平 SAR
电源电压DC 2.70V min
供电电流 117 mA
电路数 2
针脚数 48
位数 10
耗散功率 350 mW
采样率 65 Msps
分辨率Bits 10.0
输入电容 3.00 pF
输入阻抗 10.0 kΩ
模数转换数ADC 2
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 390 mW
输入通道数 2
电源电压Max 3.6 V
电源电压Min 2.7 V
输入电压 2.0 V
安装方式 Surface Mount
引脚数 48

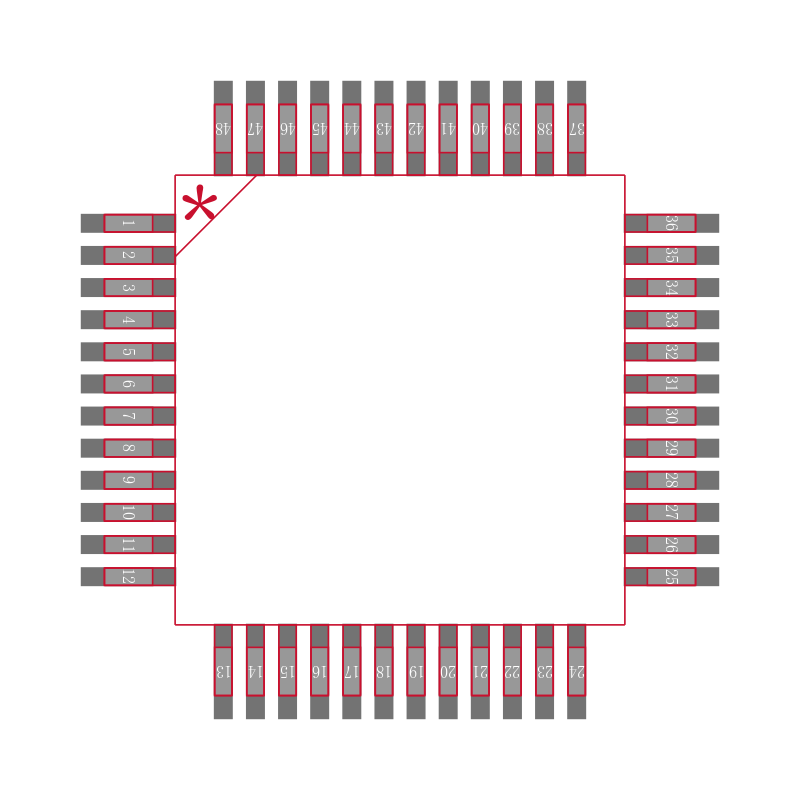

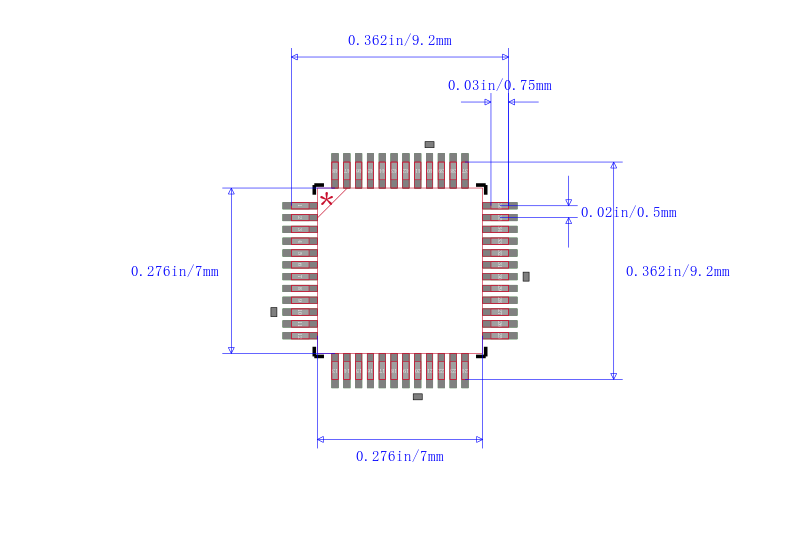

封装 LQFP-48
高度 1.4 mm
封装 LQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD9218BSTZ-65 ADI 亚德诺 | 当前型号 | 当前型号 |
AD9218BSTZ-RL65 亚德诺 | 完全替代 | AD9218BSTZ-65和AD9218BSTZ-RL65的区别 |
AD9218BST-65 亚德诺 | 完全替代 | AD9218BSTZ-65和AD9218BST-65的区别 |
AD9218BST-RL65 亚德诺 | 功能相似 | AD9218BSTZ-65和AD9218BST-RL65的区别 |
