LC2MOS高速4-和8通道8位ADC LC2MOS High Speed 4- & 8-Channel 8-Bit ADCs
A must-have for data processing uses, this ADC made by Analog Devices will translate analog electrical signals. This device is based on Semiflash architecture. Its maximum power dissipation is 100 mW. It has a single-ended input signal. This device"s digital interface is parallel. This ADC has a resolution of 8bit. This ADC has an input voltage of 5 V. This ADC has a temperature range of -40 °C to 85 °C.
电源电压DC 4.75V min
供电电流 20.0 mA
通道数 8
位数 8
耗散功率 50 mW
采样率 50 ksps
功耗 50 mW
模数转换数ADC 1
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
输入通道数 8
输入电压 5 V
安装方式 Surface Mount
引脚数 28

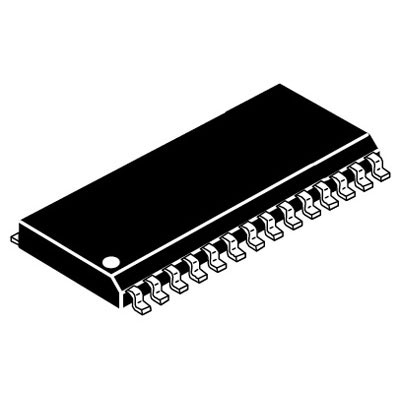

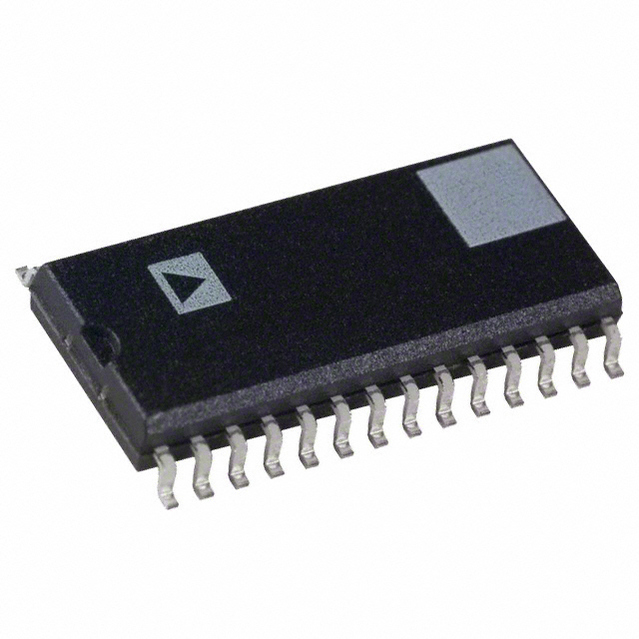

封装 SOIC-28
长度 18.1 mm
宽度 7.6 mm
高度 2.35 mm
封装 SOIC-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7828BR ADI 亚德诺 | 当前型号 | 当前型号 |
AD7828BRZ-REEL 亚德诺 | 完全替代 | AD7828BR和AD7828BRZ-REEL的区别 |
AD7828BR-REEL 亚德诺 | 完全替代 | AD7828BR和AD7828BR-REEL的区别 |
AD7828BRZ 亚德诺 | 类似代替 | AD7828BR和AD7828BRZ的区别 |
