AD9608BCPZ-105

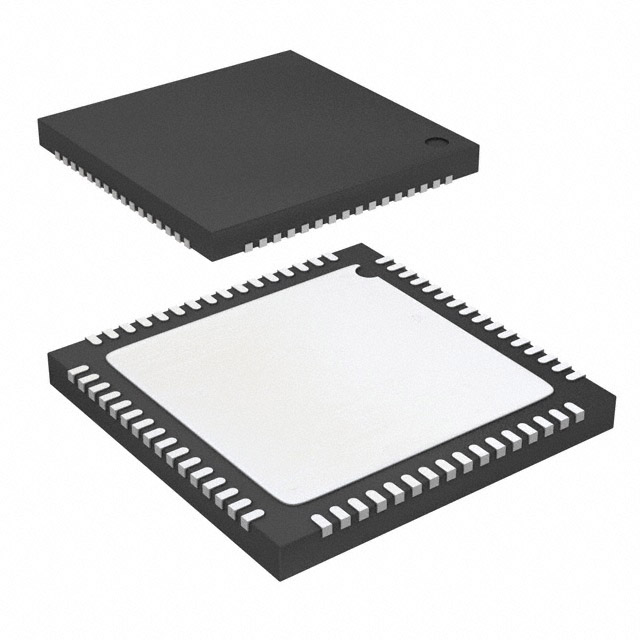

ANALOG DEVICES  AD9608BCPZ-105  模数转换器, 10 bit, 105 MSPS, 单, 1.7 V, 1.9 V, LFCSP

GENERAL DESCRIPTION

The AD9608 is a monolithic, dual-channel, 1.8 V supply, 10-bit, 105 MSPS/125 MSPS analog-to-digital converter ADC that features a high performance sample-and-hold circuit and an on-chip voltage reference. The product uses multistage differential pipeline architecture with output error correction logic to provide 10-bit accuracy at 125 MSPS data rates and to guarantee no missing codes over the full operating temperature range.

FEATURES

1.8 V analog supply operation

1.8 V CMOS or 1.8 V LVDS output

SNR = 61.7 dBFS at 70 MHz

SFDR = 85 dBc at 70 MHz

Low power: 71 mW/channel ADC core at 125 MSPS

Differential analog input with 650 MHz bandwidth

IF sampling frequencies to 200 MHz

On-chip voltage reference and sample-and-hold circuit

2 V p-p differential analog input

DNL = ±0.13 LSB

Serial port control options

  Offset binary, Gray code, or twos complement data format

  Optional clock duty cycle stabilizer

  Integer 1-to-8 input clock divider

  Data output multiplex option

  Built-in selectable digital test pattern generation

  Energy-saving power-down modes

  Data clock out with programmable clock and data alignment
