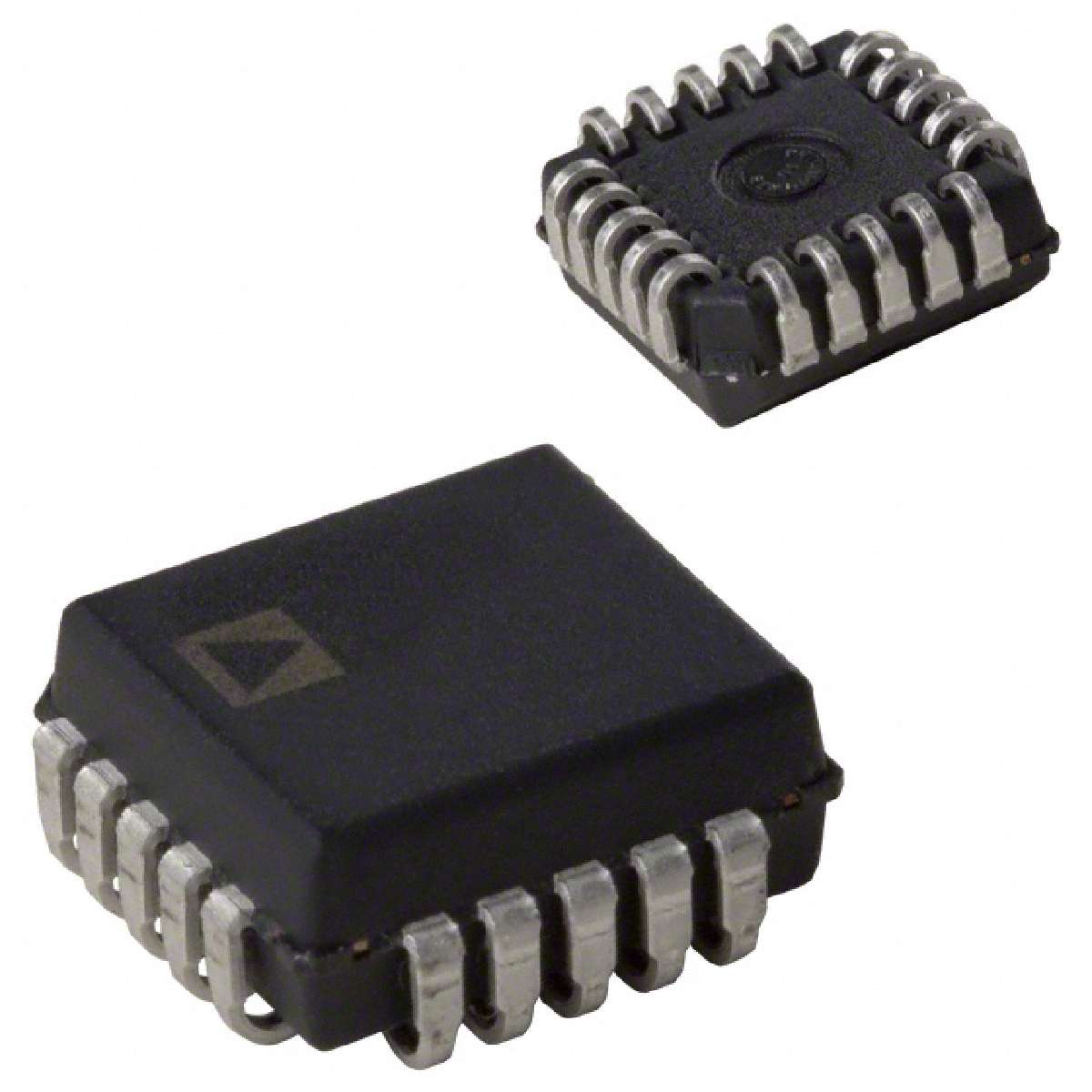

AD652JP-REEL

单片同步电压频率转换器 Monolithic Synchronous Voltage-to-Frequency Converter

电压至频率 转换器 IC ±0.02% 20-PLCC（9x9）

得捷:
IC V/F CONV 2MHZ 20PLCC

贸泽:
电压频率转换及频率电压转换 IC SYNC V/F CONVERTR

艾睿:
VFC Sync 2MHz 20-Pin PLCC T/R

安富利:
The AD652 synchronous voltage-to-frequency converter SVFC is a powerful building block for precision analog-todigital conversion, offering typical nonlinearity of 0.002% 0.005% maximum at a 100 kHz output frequency. The inherent monotonicity of the transfer function and wide range of clock frequencies allow the conversion time and resolution to be optimized for specific applications. The AD652 uses a variation of the charge-balancing technique to perform the conversion function. The AD652 uses an external clock to define the full-scale output frequency, rather than relying on the stability of an external capacitor. The result is a more stable, more linear transfer function, with significant application benefits in both single- and multichannel systems. Gain drift is minimized using a precision low drift reference and low TC, on-chip, thin-film scaling resistors. Furthermore, initial gain error is reduced to less than 0.5% by the use of laserwafer-trimming. The analog and digital sections of the AD652 have been designed to allow operation from a single-ended power source, simplifying its use with isolated power supplies. The AD652 is available in five performance grades. The 20-lead PLCC-packaged JP and KP grades are specified for operation over the 0Ѓ to +70Ѓ commercial temperature range. The 16-lead CERDIP-packaged AQ and BQ grades are specified for operation over the ?40Ѓ to +85Ѓ industrial temperature range. The AD652SQ is available for operation over the full ?55Ѓ to +125Ѓ extended temperature range.

Chip1Stop:
VFC Sync 2MHz 20-Pin PLCC T/R

罗切斯特:
VFC Sync 2MHz 20-Pin PLCC T/R
