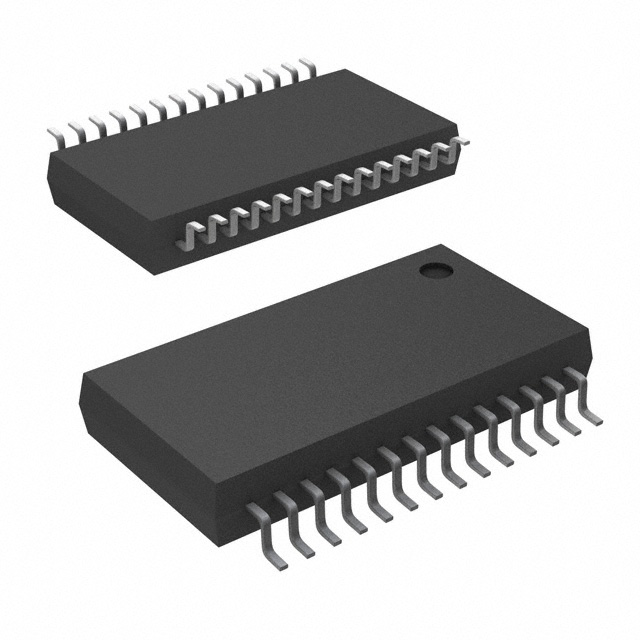

TEXAS INSTRUMENTS ADS805E 模数转换器, 12 bit, 20 MSPS, 单, 4.75 V, 5.25 V, SSOP
The ADS805 is a 20MHz, high dynamic range, 12-bit, pipelined Analog-to-Digital Converter ADC. This converter includes a high-bandwidth track-and-hold that gives excellent spurious performance up to and beyond the Nyquist rate. This high-bandwidth, linear track-and-hold minimizes harmonics and has low jitter, leading to excellent Signal-to-Noise Ratio SNR performance. The ADS805 is also pin-compatible with the 10MHz ADS804 and the 5MHz ADS803.
The ADS805 provides an internal reference or an external reference can be used. The ADS805 can be programmed for a 2Vp-p input range which is the easiest to drive with a single op amp and provides the best spurious performance. Alternatively, the 5Vp-p input range can be used for the lowest input-referred noise of 0.09LSBs rms giving superior imaging performance. There is also the capability to set the input range between 2Vp-p and 5Vp-p, either single-ended or differential. The ADS805 also provides an over-range flag that indicates when the input signal has exceeded the converters full-scale range. This flag can also be used to reduce the gain of the front end signal conditioning circuitry.
The ADS805 employs digital error techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for communications, medical imaging, video, and test instrumentation applications. The ADS805 is available in an SSOP-28 package.
电源电压DC 4.75V min
供电电流 60.0 mA
电路数 1
通道数 1
针脚数 28
位数 12
耗散功率 300 mW
采样率 20 Msps
功耗 300 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 345 mW
输入通道数 1
电源电压Max 5.25 V
电源电压Min 4.75 V
输入电压 3.5V, 5V
安装方式 Surface Mount
引脚数 28
封装 SSOP-28
长度 10.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
香港进出口证 NLR
