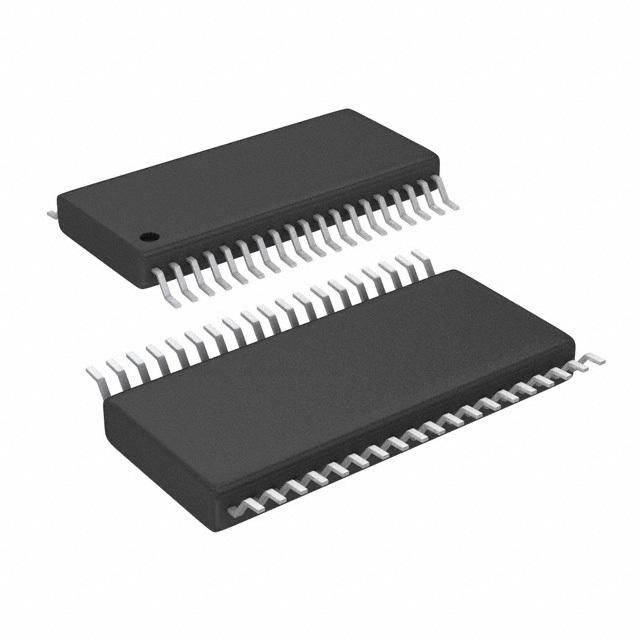

ANALOG DEVICES AD5547CRUZ. 芯片, 数模转换器, 16位, TSSOP-38
Product Details
The AD5547/AD5557 are dual precision, 16-/14-bit, multiplying, low power, current-output, parallel input, digital- to-analog converters. They are designed to operate from single +5 V supply with ±10 V multiplying references for 4-quadrant outputs with up to 4 MHz bandwidth.
The built-in 4-quadrant resistors facilitate resistance matching and temperature tracking, which minimize the numbers of components needed for multiquadrant applications. In addition, the feedback resistor RFB simplifies the I-V conversion with an external buffer.
The AD5547/AD5557 are available in a compact TSSOP-38 package and operate at the extended automotive temperature range of –40°C to +125°C.
**Applications**
### Features and Benefits
AD5547-EP supports defense and aerospace applications AQEC standard
输出接口数 2
供电电流 10.0 µA
通道数 2

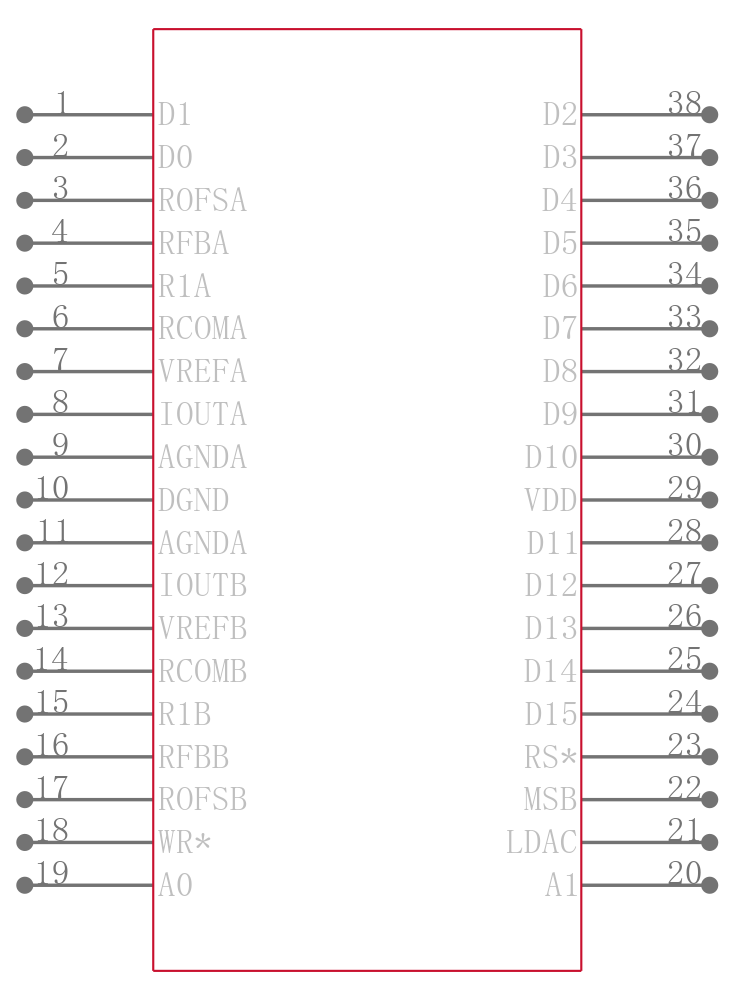

针脚数 38
位数 16
耗散功率 0.000055 W
采样率 2 Msps
分辨率Bits 16.0
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 0.055 mW
数模转换数DAC 2
电源电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 38

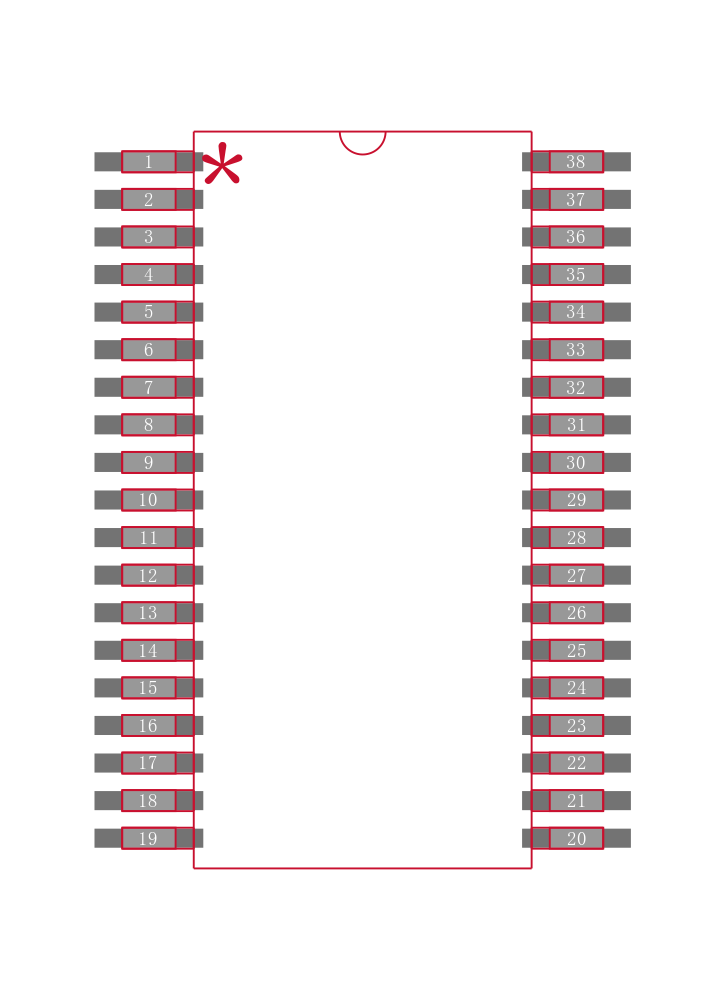

封装 TSSOP-38

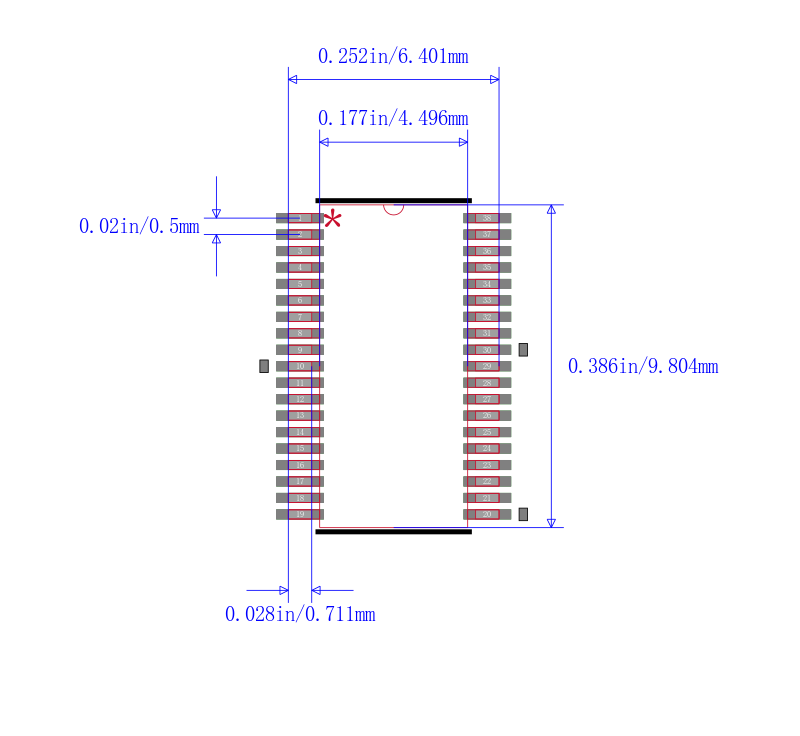

长度 9.7 mm
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-38
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5547CRUZ ADI 亚德诺 | 当前型号 | 当前型号 |
AD5547CRUZ-REEL7 亚德诺 | 类似代替 | AD5547CRUZ和AD5547CRUZ-REEL7的区别 |
DAC8822QCDBT 德州仪器 | 功能相似 | AD5547CRUZ和DAC8822QCDBT的区别 |
DAC8822QBDBT 德州仪器 | 功能相似 | AD5547CRUZ和DAC8822QBDBT的区别 |
