ADS8513IDWRG4

模数转换器 - ADC 16B 40KSPS Lo Pwr Sampling ADC

DESCRIPON

The ADS8513 is a complete low-power, single 5-V supply, 16-bit sampling analog-to-digital A/D

converter. It contains a complete 16-bit capacitor-based, successive approximation register SAR A/D converter with sample and hold, clock, reference, and serial data interface. The converter

can be configured for a variety of input ranges including ±10 V, ±5 V, 0 V to 10 V, and 0.5 V to

4.5 V. A high-impedance, 0.3-V to 2.8-V input is also available with input impedance greater than 10 MΩ. For most input ranges, the input voltage can swing to 25 V or –25 V without damage to the converter.

FEATURES

• 40-kHz Min Sampling Rate

• Very Low Power: 25 mW

• ±3.33-V, ±5-V, ±10-V, 4-V, and 10-V Input Ranges

• 89.9-dB SINAD with 10-kHz Input

• ±1.5 LSB Max INL

• ±1 LSB Max DNL, 16-Bit NMC

• ±5-mV BPZ, ±0.4 PPM/°C BPZ Drift

• 87-dB Min SINAD, 96-dB Min SFDR

• Uses Internal or External 2.5-V Reference

• No External Calibration Resistors Required

• Single 5-V Analog Supply

– 40-mW Max Power Dissipation

– 50-μW Max Power-Down Mode

• 20-Mhz Compatible SPI

• Global CONV and 3-Stated Bus for Multi-Chip Simultaneous S/H Operation

• Pin-Compatible with ADS7813 and 12-Bit ADS7812/8512

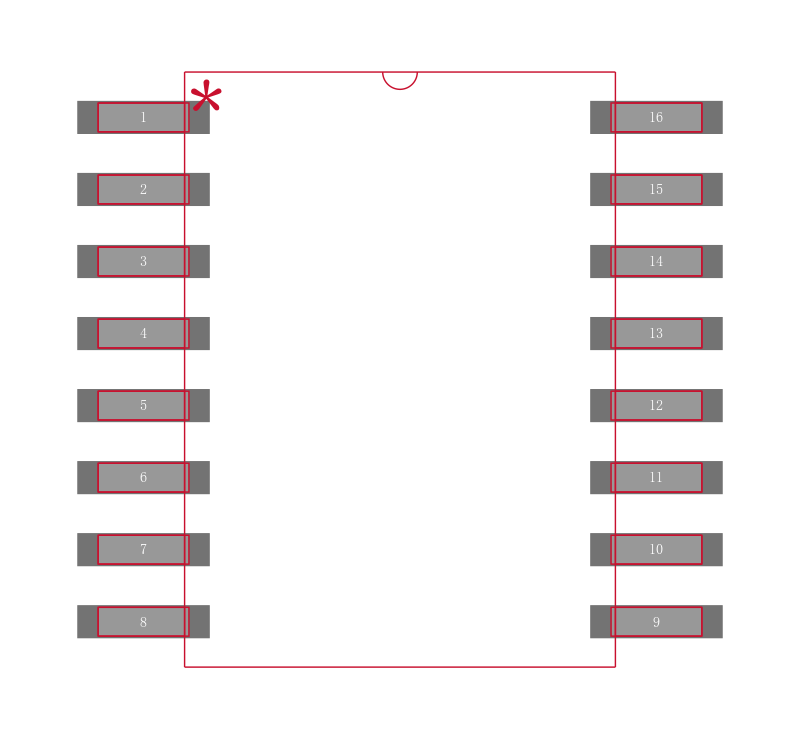

• SO-16 Package

APPLICATIONS

• Industrial Process Control

• Test Equipment

• Robotics

• DSP Servo Control

• Medical Instrumentation

• Portable Data Acquisition Systems
