AD7896BRZ-REEL7

2.7 V至5.5 V ， 12位， 8 ？的ADC采用8引脚SOIC / PDIP 2.7 V to 5.5 V, 12-Bit, 8 s ADC in 8-Lead SOIC/PDIP

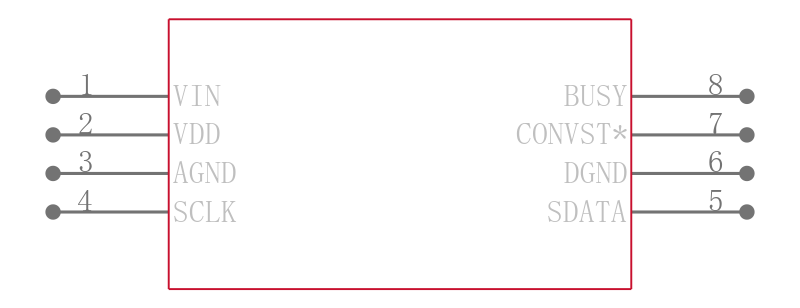

Product Details

The AD7896 is a fast, 12-bit ADC which operates from a single +2.7 V to 5.5 V supply and is housed in a small 8-pin mini-DIP and 8-pin SOIC. The part contains an 8 µs successive approximation A/D converter, an on-chip track/hold amplifier, an on-chip clock and a high speed serial interface.

Output data from the AD7896 is provided via a high speed, serial interface port. This two-wire serial interface has a serial clock input and a serial data output with the external serial clock accessing the serial data from the part.

In addition to the traditional dc accuracy specifications such as linearity, full-scale and offset errors, the AD7896 is also specified for dynamic performance parameters including harmonic distortion and signal-to-noise ratio.

The part accepts an analog input range of 0 V to VDD and operates from a single +2.7 V to +5.5 V supply consuming only 9 mW typical. The VDD input is also used as the reference for the part so that no external reference is required.

The AD7896 features a high sampling rate mode and, for low power applications, a proprietary automatic power down mode where the part automatically goes into power down once con-version is complete and "wakes up" before the next conversion cycle.

The part is available in a small, 8-pin, 0.3" wide, plastic or hermetic dual-in-line package mini-DIP and in an 8-pin, small outline IC SOIC.

### Features and Benefits

.

100 kHz Throughput Rate

.

Fast 12-Bit Sampling ADC with 8 µs Conversion Time

.

8-Lead PDIP and SOIC

.

Single 2.7 V to 5.5 V Supply Operation

.

High Speed, Easy-to-Use Serial Interface

.

On-Chip Track-and-Hold Amplifier

.

Analog Input Range Is 0 V to Supply

.

High Input Impedance

.

Low Power: 9 mW Typ
