AD7893ANZ-2

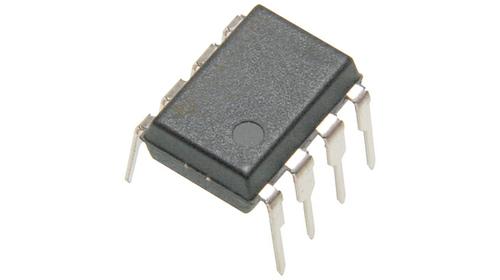

ANALOG DEVICES  AD7893ANZ-2  模数转换器, 12 bit, 117 kSPS, 单, 5 V, DIP

Product Details

The AD7893 is a fast, 12-bit ADC that operates from a single +5 V supply and is housed in a small 8-pin mini-DIP and 8-pin SOIC. The part contains a 6 µs successive approximation A/D converter, an on-chip track/hold amplifier, an on-chip clock and a high speed serial interface.

Output data from the AD7893 is provided via a high speed, serial interface port. This two-wire serial interface has a serial clock input and a serial data output with the external serial clock accessing the serial data from the part.

In addition to traditional dc accuracy specifications such as linearity, full-scale and offset errors, the AD7893 is also specified for dynamic performance parameters, including harmonic distortion and signal-to-noise ratio.

The part accepts an analog input range of ±10 V AD7893-10, ±2.5 V AD7893-3, 0 V to +5 V AD7893-5 or 0 V to +2.5 V AD7893-2 and operates from a single +5 V supply, consuming only 25 mW typical.

The AD7893 is fabricated in Analog Devices’ Linear Compatible CMOS LC2MOS process, a mixed technology process that combines precision bipolar circuits with low power CMOS logic. The part is available in a small, 8-pin, 0.3" wide, plastic or hermetic dual-in-line package mini-DIP and in an 8-pin, small outline IC SOIC.

### Features and Benefits

.

Fast 12-Bit ADC with 6 µs Conversion Time

.

8-Pin Mini-DlP and SOIC

.

Single Supply Operation

.

High Speed, Easy-to-Use, Serial Interface

.

On-Chip Track/Hold Amplifier

.

Low Power: 25 mW typ

.

Selection of Input Ranges:

±10 V for AD7893-10

±2.5 V for AD7893-3

0 V to +2.5 V for AD7893-2

0 V to +5 V for AD7893-5
