AD7667ACPZ

ADC Single SAR 1MSPS 16Bit Parallel/Serial 48Pin LFCSP EP

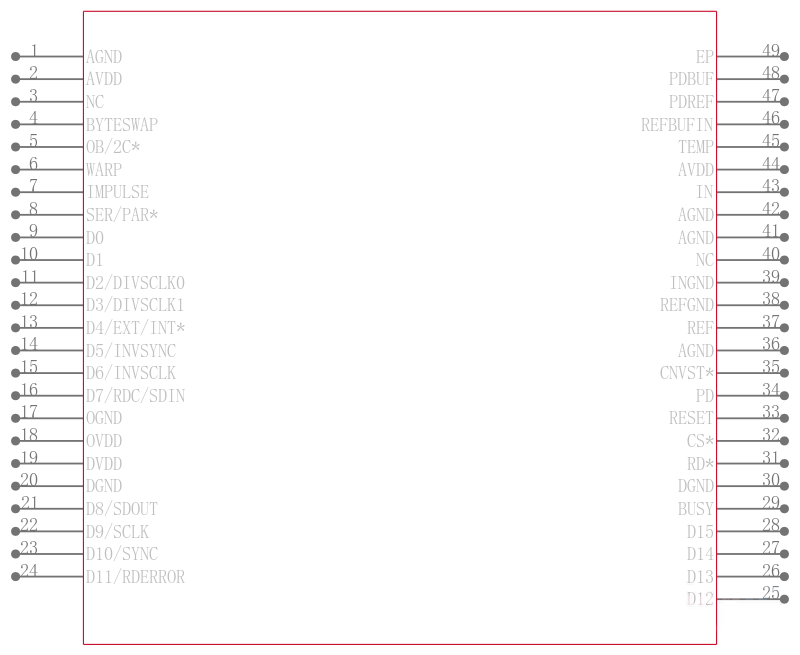

Product Details

The AD7667 is a 16-bit, 1 MSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains a high-speed 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits, and both serial and parallel system interface ports.

It features a very high sampling rate mode Warp and, for asynchronous conversion rate applications, a fast mode Normal and, for low power applications, a reduced power mode Impulse where the power is scaled with the throughput. .

It is fabricated using Analog Devices’ high-performance, 0.6 micron CMOS process, with correspondingly low cost and is available in a 48-lead LQFP and a tiny 48-lead LFCSP with operation specified from –40°C to +85°C. .

**Applications**

.

Data Acquisition

.

Instrumentation

.

Digital Signal Processing

.

Spectrum Analysis

.

Medical Instruments

.

Battery-Powered Systems

.

Process Control

### Features and Benefits

.

2.5 V Internal Reference: Typical Drift 3 ppm/ºC

.

Throughput:

1 MSPS Warp Mode

800 kSPS Normal Mode

666 kSPS Impulse Mode

.

INL: ±2.5 LSB Max ±0.0038% of Full Scale

.

16 Bits Resolution with No Missing Codes

.

S/N+D: 88 dB max @ 20 kHz; THD: -96 dB max @ 20 kHz

.

Analog Input Voltage Range: 0 V to 2.5 V

.

No Pipeline Delay

.

Parallel and Serial 5 V/3 V Interface

.

SPI®/QSPI™/MICROWIRE™/DSP Compatible

.

Single 5 V Supply Operation

.

Power Dissipation:

87 mW typ @ 666 kSPS, 130 µW @ 1 kSPS without REF

133 mW typ @1 MSPS with REF

.

Package:

48-Lead Quad Flat Pack LQFP

48-Lead Chip Scale Package LFCSP

Pin-to-Pin Compatible with PulSAR™ ADCs
