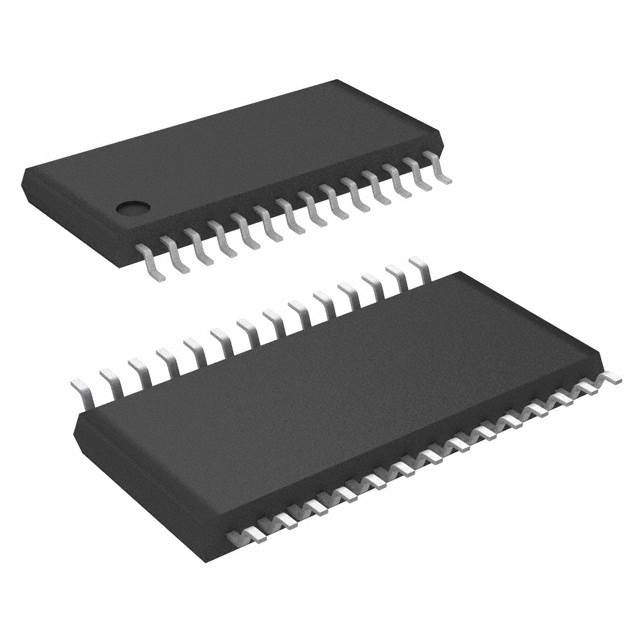

AD5546CRUZ-REEL7

DAC 1CH Segment 16Bit Automotive 28Pin TSSOP T/R

Product Details

The AD5546/AD5556 are precision 16-/14-bit, multiplying, low power, current output, parallel input D/A converters. They operate from a single 2.7 V to 5.5 V supply with ±10 V multiplying references for 4-quadrant outputs. Built-in 4-quadrant resistors facilitate the resistance matching and temperature tracking that minimize the number of components needed for multiquadrant applications. The feedback resistor RFB simplifies the I-V conversion with an external buffer. The AD5546/AD5556 are packaged in compact TSSOP-28 packages with operating temperatures from –40°C to +125°C.

### Features and Benefits

.

16-bit resolution - AD5546

.

14-bit resolution - AD5556

.

2- or 4-quadrant multiplying DAC

.

±1 LSB DNL

.

±1 LSB INL

.

Operating supply voltage: 2.7 V to 5.5 V

.

Low noise: 12 nV/√Hz

.

Low power: IDD = 10 μA

.

0.5 μs settling time

.

Built-in RFB facilitates current-to-voltage conversion

.

Built-in 4-quadrant resistors allow 0 V to –10 V, 0 V to +10 V, or ±10 V outputs

.

Built-in 4-quadrant resistors allow 0 V to –10 V, 0 V to +10 V, or ±10 V outputs

.

See data sheet for additional features
