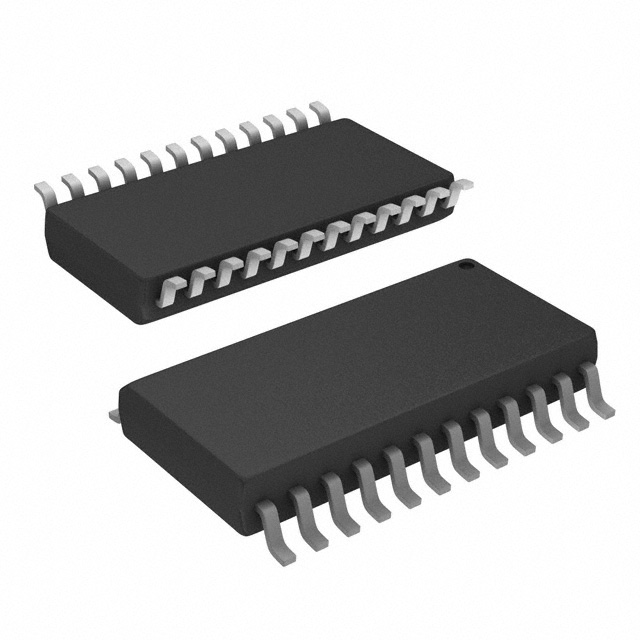

AD8582AR

AD8582AR图片1
AD8582AR图片2
AD8582AR图片3
AD8582AR图片4
AD8582AR图片5
AD8582AR图片6
AD8582AR图片7
AD8582AR图片8
AD8582AR图片9
AD8582AR图片10
AD8582AR图片11
AD8582AR概述

+5伏,并行输入完整的双通道12位DAC +5 Volt, Parallel Input Complete Dual 12-Bit DAC

Product Details

The AD8582 is a complete, parallel input, dual 12-bit, voltage output DAC designed to operate from a single +5 volt supply. Built using a CBCMOS process, this monolithic DAC offers the user low cost, and ease-of-use in +5 volt only systems.

Included on the chip, in addition to the DACs, are a rail-to-rail amplifier, latch and reference. The reference VREF is trimmed to 2.5 volts output, and the on-chip amplifier gains up the DAC output to 4.095 volts full scale. The user needs only supply a +5 volt supply.>/p>

The AD8582 is coded natural binary. The op amp output swings from 0 volt to +4.095 volts for a one-millivolt-per-bit resolution, and is capable of driving ±5 mA. Operation down to 4.3 V is possible with output load currents less than 1 mA.

The high speed parallel data interface connects to the fastest processors without wait states. The double-buffered input structure allows the user to load the input registers one at a time, then a single load strobe tied to both LDA + LDB inputs will update both DAC outputs simultaneously. LDA and LDB can also be activated independently to immediately update their respective DAC registers. An address input decodes DAC A or DAC B when the chip select CS input is strobed. An asynchronous reset input sets the output to zero scale. The MSB bit can be used to establish a preset to midscale when the reset input is strobed.

The AD8582 is available in the 24-pin plastic DIP and the surface mount SOIC-24. Each part is fully specified for operation over -40°C to +85°C, and the full +5 V ±5% power supply range.

### Features and Benefits

.
Complete Dual 12-Bit DAC
.
No External Components
.
Single +5 Volt Operation
.
1 mV/Bit with 4.095 V Full Scale
.
True Voltage Output, ±5 mA Drive
.
Very Low Power: 5 mW
AD8582AR中文资料参数规格
技术参数

输出接口数 2

通道数 2

位数 12

耗散功率 35 mW

采样率 62.5 ksps

分辨率Bits 12.0

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 35 mW

数模转换数DAC 2

封装参数

安装方式 Surface Mount

引脚数 24

封装 SOIC-24

外形尺寸

长度 15.6 mm

宽度 7.6 mm

高度 2.35 mm

封装 SOIC-24

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

军工级 No

数据手册

AD8582AR引脚图与封装图
AD8582AR引脚图
AD8582AR封装图
AD8582AR电路图
AD8582AR封装焊盘图
