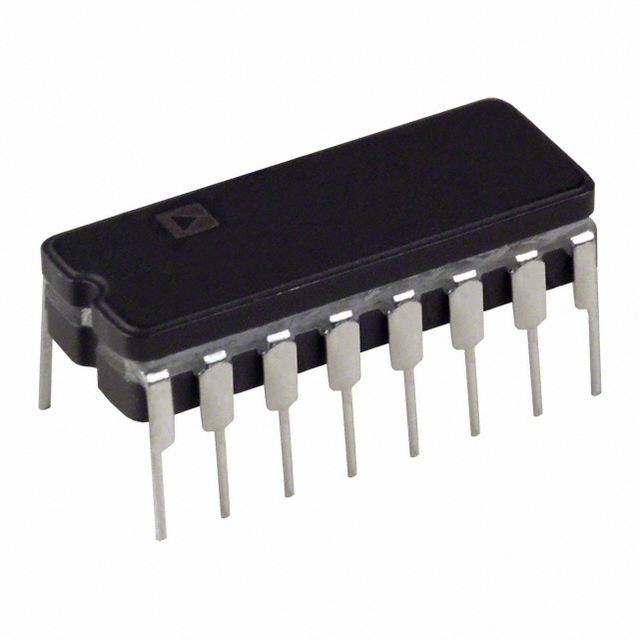

AD7533SQ

CMOS的低成本10位乘法DAC CMOS LOW COST 10-BIT MULTIPLYING DAC

Product Details

The AD7533 is a low cost, 10-bit, 4-quadrant multiplying DAC manufactured using an advanced thin-film-on-monolithic-CMOS wafer fabrication process.

Pin and function equivalent to the AD7520 industry standard, the AD7533 is recommended as a lower cost alternative for old AD7520 sockets or new 10-bit DAC designs.

AD7533 application flexibility is demonstrated by its ability to interface to TTL or CMOS, operate on 5 V to 15 V power, and provide proper binary scaling for reference inputs of either positive or negative polarity.

**APPLICATIONS**

.

Digitally controlled attenuators

.

Programmable gain amplifiers

.

Function generation

.

Linear automatic gain controls

### Features and Benefits

.

Low cost 10-bit DAC

.

Low cost AD7520 replacement

.

Linearity: ½ LSB, 1 LSB, or 2 LSB

.

Low power dissipation

.

Full 4-quadrant multiplying DAC

.

CMOS/TTL direct interface

.

Latch free protection Schottky not required

.

Endpoint linearity
