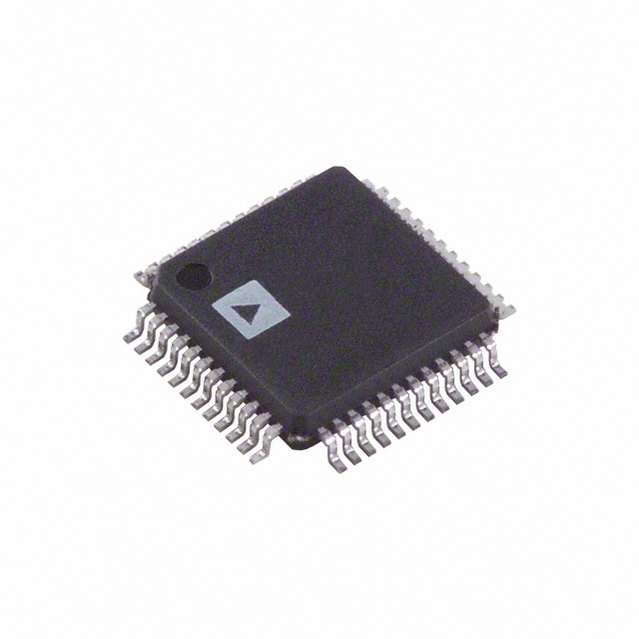

ANALOG DEVICES AD9218BSTZ-105 模数转换器, 10 bit, 105 MSPS, 单, 2.7 V, 3.6 V, LQFP
The is a 10-bit dual monolithic sampling Analog-to-digital Converter ADC with on-chip track-and-hold circuits. The product is low power and is small and easy to use. The converter operates at a 105MSPS conversion rate with outstanding dynamic performance over its full operating range. Each channel can be operated independently. The ADC requires only a single 3V power supply and a clock for full operation. No external reference or driver components are required for many applications. The digital outputs are TTL/CMOS compatible and a separate output power supply pin supports interfacing with 3.3/2.5V logic. The clock input is TTL/CMOS compatible and the 10-bit digital outputs can be operated from 3V supplies. User-selectable options offer a combination of power-down modes, digital data formats and digital data timing schemes. In power-down mode, the digital outputs are driven to a high impedance state.
频率 300 MHz
数字逻辑电平 SAR
电源电压DC 2.70V min
供电电流 183 mA
电路数 2
通道数 2
针脚数 48
位数 10
耗散功率 550 mW
采样率 105 Msps
功耗 550 mW
分辨率Bits 10.0
输入电容 3.00 pF
输入阻抗 10.0 kΩ
模数转换数ADC 2
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 565 mW
输入通道数 2
电源电压Max 3.6 V
电源电压Min 2.7 V
输入电压 1 V
安装方式 Surface Mount
引脚数 48

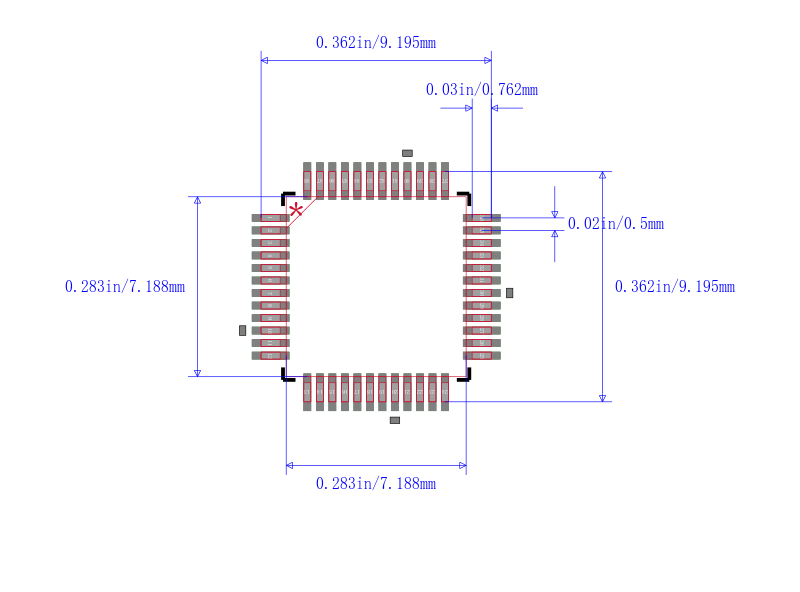

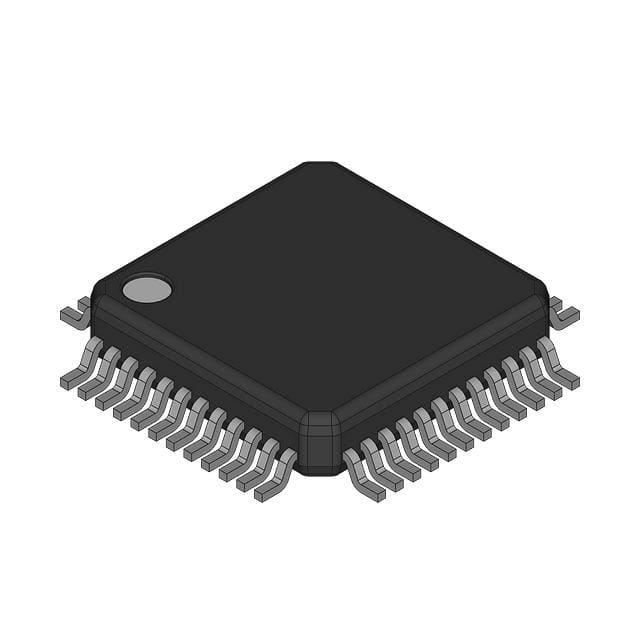

封装 LQFP-48
长度 7 mm
宽度 7 mm
高度 1.4 mm
封装 LQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 通信与网络, 传感与仪器, Portable Devices, Communications & Networking, Sensing & Instrumentation, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD9218BSTZ-105 ADI 亚德诺 | 当前型号 | 当前型号 |
AD9218BST-105 亚德诺 | 完全替代 | AD9218BSTZ-105和AD9218BST-105的区别 |
AD9218BST-RL105 亚德诺 | 完全替代 | AD9218BSTZ-105和AD9218BST-RL105的区别 |
AD9218BSTZ-RL105 亚德诺 | 完全替代 | AD9218BSTZ-105和AD9218BSTZ-RL105的区别 |
