ADS8519IDB

16位， 250ksps的，串行， CMOS ，采样模拟数字转换器 16-Bit, 250kSPS, Serial, CMOS, Sampling ANALOG-TO-DIGITAL CONVERTER

DESCRIPON

The ADS8519 is a complete 16-bit sampling analog-to-digital A/D converter using state-of-the-art CMOS structures. It contains a complete 16-bit, capacitor-based, successive approximation register  SAR A/D converter with sample-and-hold, reference, clock, and a serial data interface. Data can be output using the internal clock or synchronized to an external data clock. The ADS8519 also provides an output synchronization pulse for ease-of-use with standard DSP processors.

FEATURES

• 0V to 8.192V, ±5V, and ±10V Input Ranges

• 93dB SNR with 20kHz Input

• ±1.5LSB Max INL

• ±1LSB Max DNL; 16 Bits, No Missing Codes

• SPI™-Compatible Serial Output with Daisy-Chain TAG Feature and 3-State Bus

• 5V Analog Supply, 1.65V to 5.25V I/O Supply

• Pinout Similar to 16-Bit ADS7809 Low-Speed and 12-Bit ADS7808 and ADS8508

• No External Precision Resistors Required

• Uses Internal or External Reference

• 110mW Typ Power Dissipation at 250kSPS

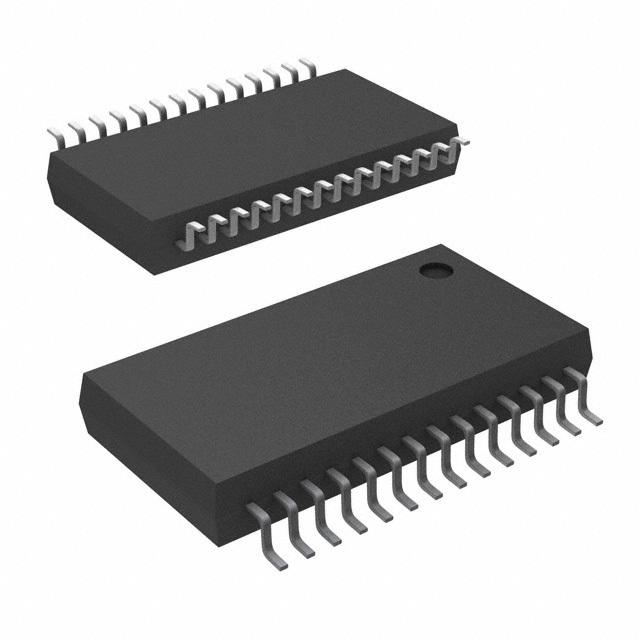

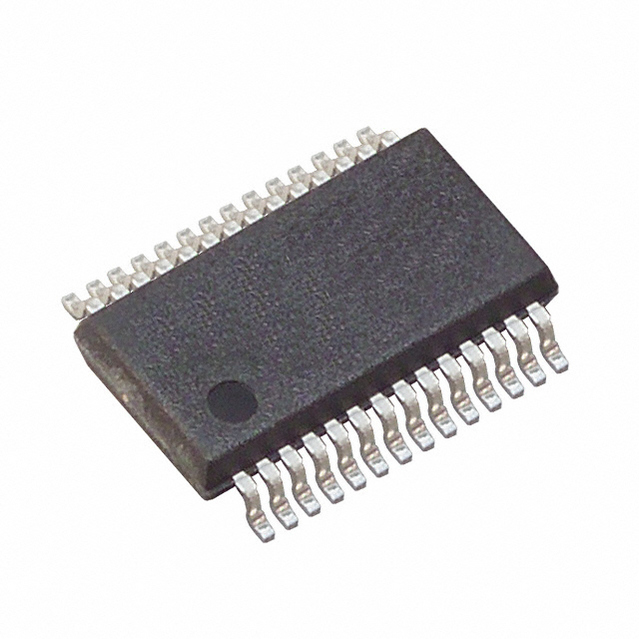

• 28-Pin SSOP Package

• Simple DSP Interface
