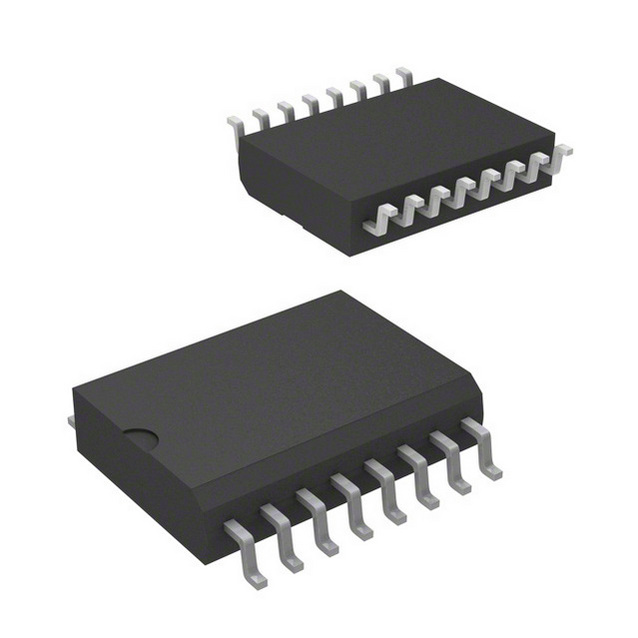

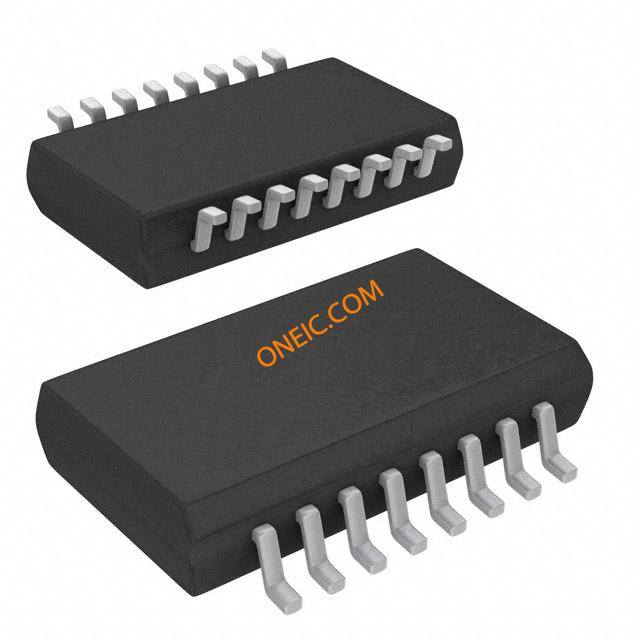

ANALOG DEVICES AD7542KRZ 数模转换器, 12 bit, 4.75V 至 5.25V, WSOIC, 16 引脚
Product Details
The AD7542 is a precision 12-bit CMOS multiplying DAC designed for direct interface to 4- or 8-bit microprocessors.
The functional diagram shows the AD7542 to consist of three 4-bit data registers, a 12-bit DAC register, address decoding logic and a 12-bit CMOS multiplying DAC. Data is loaded into the data registers in three 4-bit bytes, and subsequently transferred to the 12-bit DAC register. All data loading or data transfer operations are identical to the WRITE cycle of a static RAM. A clear input allows the DAC register to be easily reset to all zeros when powering up the device.
### Features and Benefits
输出接口数 1
通道数 1
针脚数 16
位数 12
分辨率Bits 12.0
工作温度Max 85 ℃
工作温度Min -40 ℃
数模转换数DAC 1
电源电压 4.75V ~ 5.25V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
高度 2.35 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7542KRZ ADI 亚德诺 | 当前型号 | 当前型号 |
AD7542KR 亚德诺 | 完全替代 | AD7542KRZ和AD7542KR的区别 |
MX7542JCWE+ 美信 | 类似代替 | AD7542KRZ和MX7542JCWE+的区别 |
MX7542KCWE+ 美信 | 类似代替 | AD7542KRZ和MX7542KCWE+的区别 |
