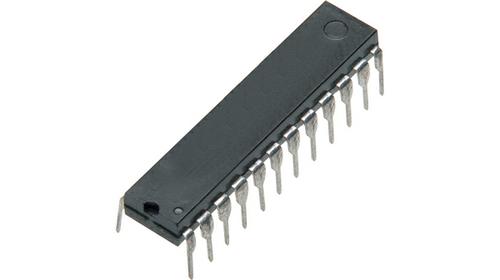

TEXAS INSTRUMENTS ADS1211P. 模数转换器, 24 bit, 16 kSPS, 单, 4.75 V, 5.25 V, DIP
The is a precision wide dynamic range delta-sigma Analog-to-digital Converter ADC with 24-bit resolution operating from a single 5V supply. The differential inputs are ideal for direct connection to transducers or low level voltage signals. The delta-sigma architecture is used for wide dynamic range and to guarantee 22-bit of no missing code performance. An effective resolution of 23-bit is achieved through the use of a very low-noise input amplifier at conversion rates up to 10Hz. Effective resolutions of 20-bit can be maintained up to a sample rate of 1kHz through the use of the unique Turbo modulator mode of operation. The dynamic range of the converters is further increased by providing a low-noise programmable gain amplifier with a gain range of 1 to 16 in binary steps.
电源电压DC 4.75V min
供电电流 3.5 mA
电路数 1
通道数 4
针脚数 24
位数 24
采样率 16 ksps
功耗 27.5 mW
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 24
封装 DIP-24
封装 DIP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 消费电子产品, 自动化与过程控制, 传感与仪器, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2018/06/27
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS1211P TI 德州仪器 | 当前型号 | 当前型号 |
ADS1211U 德州仪器 | 类似代替 | ADS1211P和ADS1211U的区别 |
ADS1211U/1K 德州仪器 | 类似代替 | ADS1211P和ADS1211U/1K的区别 |
ADS1211PG4 德州仪器 | 类似代替 | ADS1211P和ADS1211PG4的区别 |
