ADS8883IDRCT

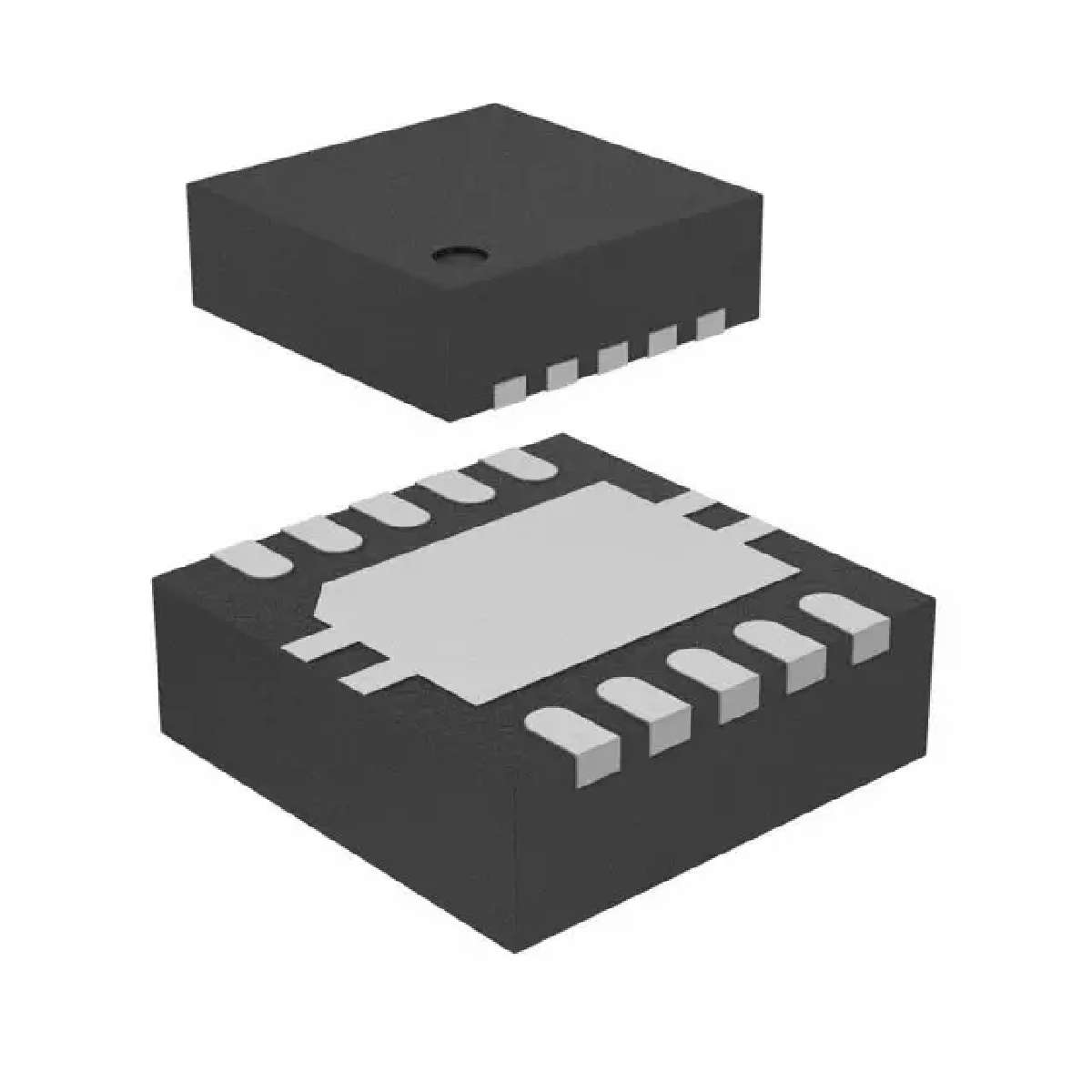

具有真差分输入、SPI 接口和菊花链的 18 位、680kSPS、单通道 SAR ADC 10-VSON -40 to 85

The ADS8883 is an 18-bit, 680-kSPS, true-differential input, analog-to-digital converter ADC. The device operates with a 2.5-V to 5-V external reference, offering a wide selection of signal ranges without additional input signal scaling. The reference voltage setting is independent of, and can exceed, the analog supply voltage AVDD.

The device offers an SPI-compatible serial interface that also supports daisy-chain operation for cascading multiple devices. An optional busy-indicator bit makes synchronizing with the digital host easy.

The device supports unipolar, true-differential analog input signals with a differential input swing of –VREF to +VREF. This true-differential analog input structure allows for a common-mode voltage of any value in the range of 0 V to +VREF when both inputs are within the operating input range of –0.1 V to VREF \\+ 0.1 V.

Device operation is optimized for very low-power operation. Power consumption directly scales with speed. This feature makes the ADS8883 excellent for lower-speed applications.
