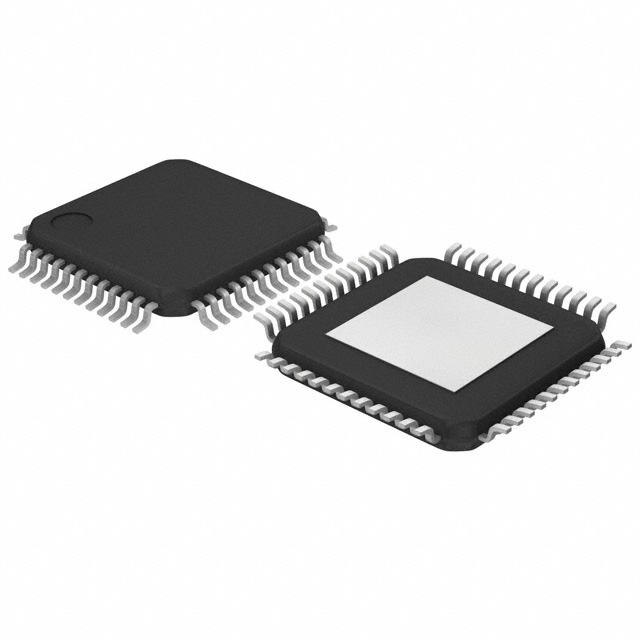

ADS1258IPHPREP

16通道， 24位模拟数字转换器 16-CHANNEL, 24-BIT ANALOG-TO-DIGITAL CONVERTER

24 位模数转换器 8，16 输入 1 三角积分 48-HTQFP（7x7）

得捷:
IC ADC 24BIT SIGMA-DELTA 48HTQFP

立创商城:
ADS1258IPHPREP

德州仪器TI:
Enhanced product 16-channel 24-bit analog-to-digital converter ADC

艾睿:
Convert a time-varying analog signal to a digital number representation of the amplitude of that signal with this ADS1258IPHPREP ADC from Texas Instruments. This device is based on Delta-Sigma architecture. Its maximum power dissipation is 62 mW. This device&s;s digital interface is serial spi. It has a single-ended and differential input signal. This ADC has a resolution of 24bit. This ADC has an input voltage of 5 V|±2.5V. Its typical dual supply voltage is ±2.5 V, with a minimum of ±2.15 V and maximum of ±2.65 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 105 °C.

Chip1Stop:
16-Channel Single ADC Delta-Sigma 125ksps 24-bit Serial 48-Pin HTQFP EP T/R

Verical:
16-Channel Single ADC Delta-Sigma 125ksps 24-bit Serial 48-Pin HTQFP EP T/R
