12位, 125/105/80/65 MSPS的DDR LVDS / CMOS输出的ADC 12-BITS, 125/105/80/65 MSPS ADC WITH DDR LVDS/CMOS OUTPUTS
ADS6125/ADS6124/ADS6123/ADS6122 ADS612X is a family of 12-bit A/D converters with sampling frequencies up to 125 MSPS. It combines high performance and low power consumption in a compact 32 QFN package. Using an internal high bandwidth sample and hold and a low jitter clock buffer helps to achieve high SNR and high SFDR even at high input frequencies.
It features coarse and fine gain options that are used to improve SFDR performance at lower full-scale analog input ranges.
The digital data outputs are either parallel CMOS or DDR LVDS Double Data Rate. Several features exist to ease data capture such as controls for output clock position and output buffer drive strength, and LVDS current and internal termination programmability.
The output interface type, gain, and other functions are programmed using a 3-wire serial interface. Alternatively, some of these functions are configured using dedicated parallel pins so that the device comes up in the desired state after power-up.
ADS612X includes internal references, while eliminating the traditional reference pins and associated external decoupling. External reference mode is also supported.
The devices are specified over the industrial temperature range -40°C to 85°C.
电源电压DC 3.00V min
供电电流 84.0 mA
电路数 1
通道数 1
位数 12
耗散功率 285 mW
采样率 65 Msps
功耗 285 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 400 mW
输入通道数 1
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 32

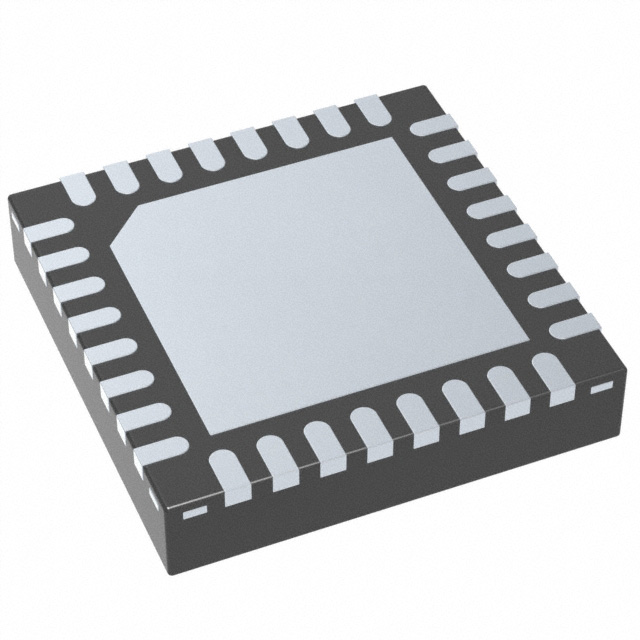

封装 VQFN-32
宽度 5 mm
封装 VQFN-32
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS6122IRHBT TI 德州仪器 | 当前型号 | 当前型号 |
ADS6122IRHBR 德州仪器 | 完全替代 | ADS6122IRHBT和ADS6122IRHBR的区别 |
ADS61B23IRHBT 德州仪器 | 类似代替 | ADS6122IRHBT和ADS61B23IRHBT的区别 |
ADS6123IRHBT 德州仪器 | 类似代替 | ADS6122IRHBT和ADS6123IRHBT的区别 |
