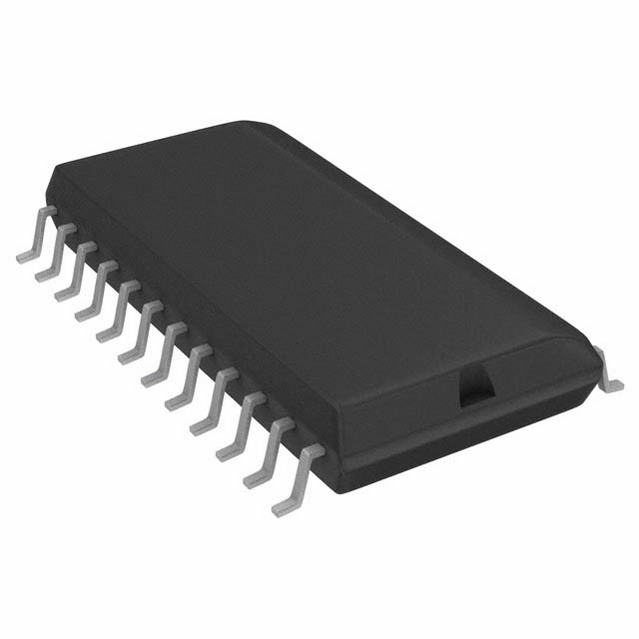

AD7538KR

LC2MOS向上兼容的14位DAC LC2MOS uP-Compatible 14-Bit DAC

Product Details

The AD7538 is a 14-bit monolithic CMOS digital-to-analog converter DAC that uses laser trimmed thin-film resistors to achieve excellent linearity.

The DAC is loaded by a single 14-bit wide word using standard chip select and memory write logic. Double buffering, which is optional using LDAC, allows simultaneous updates in a system containing multiple AD7538s.

A novel low leakage configuration enables the AD7538 to exhibit excellent output leakage current characteristics over the specified temperature range.

The AD7538 is manufactured using the linear-compatible CMOS LC2MOS process. It is speed compatible with most microprocessors and accepts TTL or CMOS logic level inputs.

### Features and Benefits

.

All grades 14-bit monotonic over the full temperature range

.

Low cost, 14-bit upgrade for 12-bit systems

.

14-bit parallel load with double buffered inputs

.

Small 24-pin, 0.30” DIP and SOIC

.

Low output leakage <20 nA over the full temperature range
