AD558SE/883B

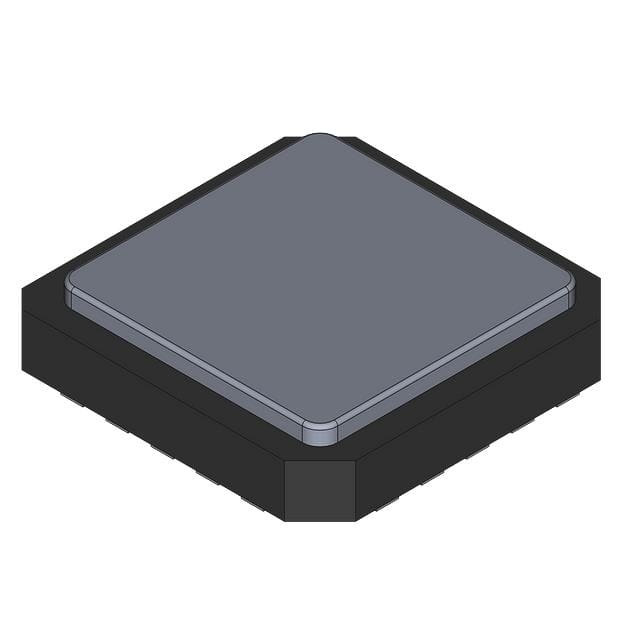

DAC 1CH R-2R 8Bit 20Pin CLLCC Tube

Product Details

The AD558 DACPORT® is a complete voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision voltage reference on a single monolithic chip. No external components or trims are required to interface, with full accuracy, an 8-bit data bus to an analog system.

The performance and versatility of the DACPORT is a result of several recently-developed monolithic bipolar technologies. The complete microprocessor interface and control logic is implemented with integrated injection logic I2 L, an extremely dense and low power logic structure that is process-compatible with linear bipolar fabrication. The internal precision voltage reference is the patented low voltage bandgap circuit which permits full-accuracy performance on a single +5 V to +15 V power supply. Thin-film silicon-chromium resistors provide the stability required for guaranteed monotonic operation over the entire operating temperature range all grades, while recent advances in laser-wafer-trimming of these thin-film resistors permit absolute calibration at the factory to within ±1 LSB; thus no user-trims for gain or offset are required. A new circuit design provides voltage settling to ±1/2 LSB for a full-scale step in 800 ns.

The AD558 is available in four performance grades. The AD558J and K are specified for use over the 0°C to +70°C temperature range, while the AD558S and T grades are specified for -55°C to +125°C operation. The "J" and "K" grades are available either in 16-pin plastic N or hermetic ceramic D DIPS. They are also available in 20-pin JEDEC standard PLCC packages. The "S" and "T" grades are available in the 16-pin hermetic ceramic DIP package.

DACPORT is a registered trademark of Analog Devices, Inc.

### Features and Benefits

.

Complete 8-bit DAC

.

Voltage Output-2 Calibrated Ranges

.

Internal Precision Bandgap Reference

.

Single-Supply Operation: +5 V to +15 V

.

Full Microprocessor Interface

.

Fast: 1 µs Voltage settling to ±1/2 LSB

.

Low Power: 75 mW

.

No User Trims

.

Guaranteed Monotonic Over Temperature

.

All Errors Specified Tmin to Tmax

.

Small 16-Pin DIP and 20-PIN PLCC Packages

.

Single Laser-Wafer-Trimmed Chip for Hybrids
