完整的12位, 25 MSPS单芯片A / D转换器 Complete 12-Bit, 25 MSPS Monolithic A/D Converter
Product Details
The AD9225 is a monolithic, single supply 12-bit, 25MSPS Analog to Digital Converter with an on-chip, high performance sample-and-hold amplifier and voltage reference. The AD9225 uses a multi-stage differential pipelined architecture with output error correction logic to provide 12-bit accuracy at 25MSPS data rates and guarantees no missing codes over the full operating temperature range.
### Features and Benefits
电路数 1
位数 12
耗散功率 383 mW
采样率 25 Msps
功耗 280 mW
分辨率Bits 12.0
输入电容 10.0 pF
输入阻抗 1.00 Ω
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 383 mW
安装方式 Surface Mount

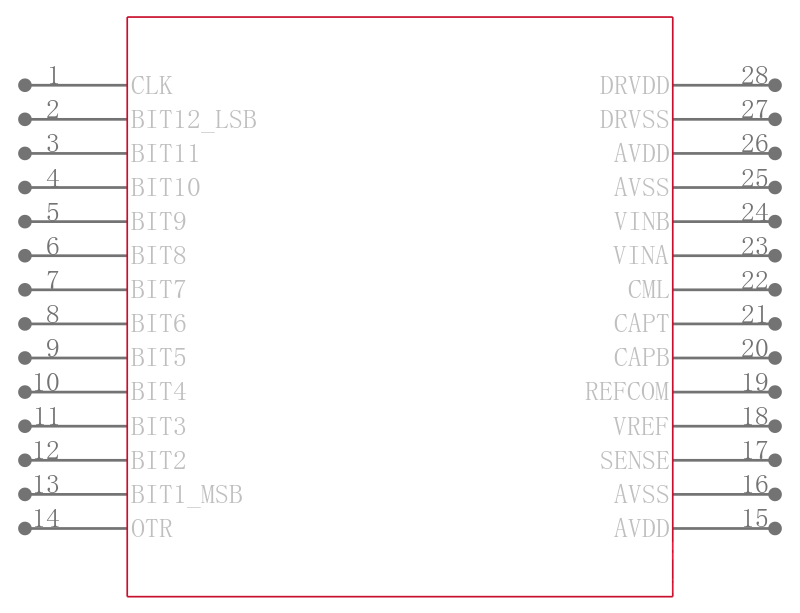

引脚数 28

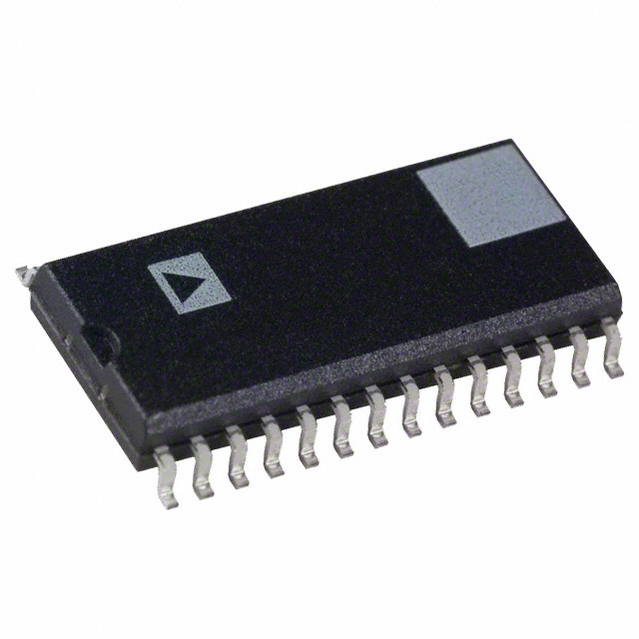

封装 SOIC-28
长度 18.1 mm
宽度 7.6 mm
高度 2.35 mm
封装 SOIC-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD9225AR ADI 亚德诺 | 当前型号 | 当前型号 |
AD9225ARZRL 亚德诺 | 完全替代 | AD9225AR和AD9225ARZRL的区别 |
AD9225ARRL 亚德诺 | 完全替代 | AD9225AR和AD9225ARRL的区别 |
AD9225ARZ 亚德诺 | 类似代替 | AD9225AR和AD9225ARZ的区别 |
