AD7664ASTZ

ANALOG DEVICES AD7664ASTZ Analog to Digital Converter, 16Bit, 570KSPS, Single, 4.75V, 5.25V, LQFP

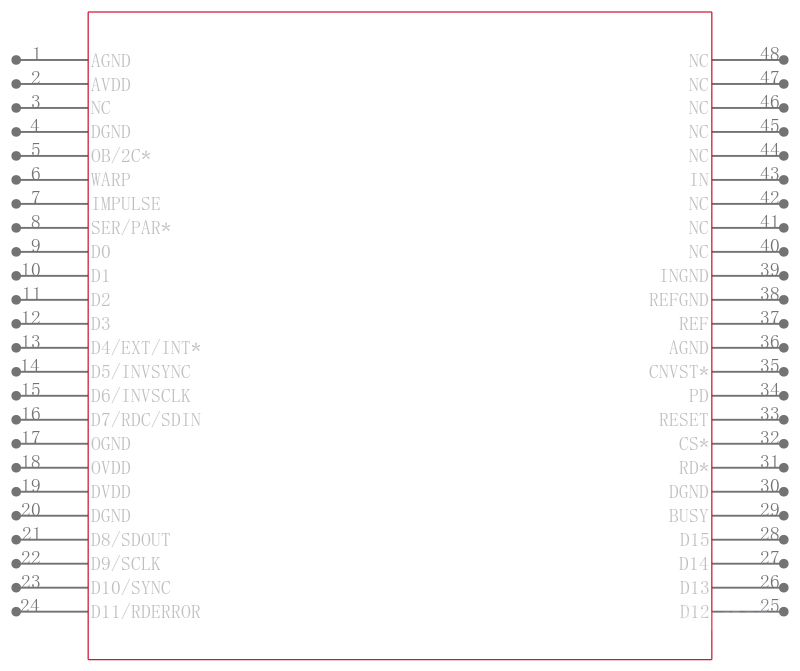

Product Details

The AD7664 is a 16-bit, 570 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains a high speed 16-bit sampling ADC, an internal conversion clock, error correction circuits, and both serial and parallel system interface ports.

The AD7664 is hardware factory-calibrated and is comprehensively tested to ensure such ac parameters as signal-to-noise ratio SNR and total harmonic distortion THD, in addition to the more traditional dc parameters of gain, offset, and linearity.

It features a very high sampling rate mode Warp, a fast mode Normal for asynchronous conversion rate applications, and for low power applications, a reduced power mode Impulse where the power is scaled with the throughput.

Product Highlights

1. Fast Throughput

The AD7664 is a 570 kSPS, charge redistribution, 16-bit SAR ADC with internal error correction circuitry.

2. Superior INL

The AD7664 has a maximum integral nonlinearity of 2.5 LSBs with no missing 16-bit code.

3. Single-Supply Operation

The AD7664 operates from a single 5 V supply and dissipates only a maximum of 115 mW. In Impulse Mode, its power dissipation decreases with the throughput to, for instance, only 21 µW at a 100 SPS throughput. It consumes 7 µW maximum when in power-down.

4. Serial or Parallel Interface

Versatile parallel or 2-wire serial interface arrangement compatible with both 3 V or 5 V logic.

Applications

.

Data acquisition

.

Instrumentation

.

Digital signal processing

.

Spectrum analysis

.

Medical instruments

.

Battery-powered systems

.

Process control

### Features and Benefits

.

Throughput:

.

570 kSPS Warp mode

.

500 kSPS Normal mode

.

444 kSPS Impulse mode

.

INL: 2.5 LSB max 0.0038% of full scale

.

16-Bit resolution with no missing codes

.

S/N+D: 90 dB Typ @ 45 kHz

.

THD: –100 dB Typ @ 45 kHz

.

Analog input voltage range: 0 V to 2.5 V

.

Both AC and DC specifications

.

No pipeline delay

.

Parallel and serial 5 V/3 V interface

.

SPI®/QSPITM/MICROWIRETM

/DSP compatible

.

See data sheet for additional features
