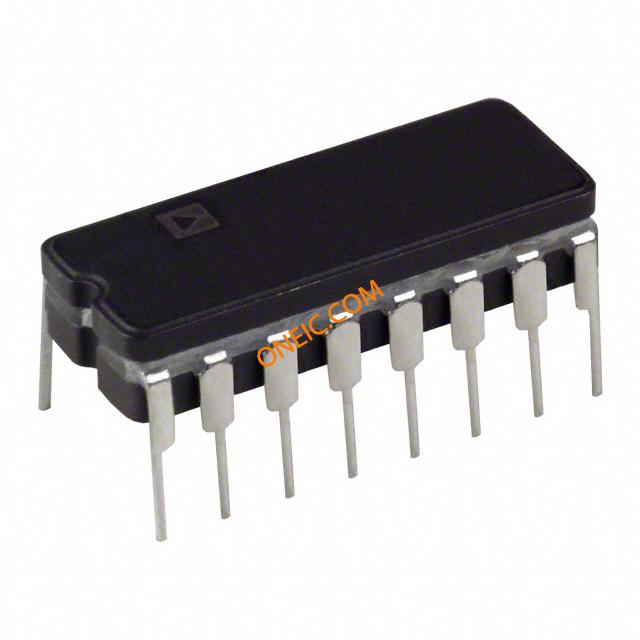

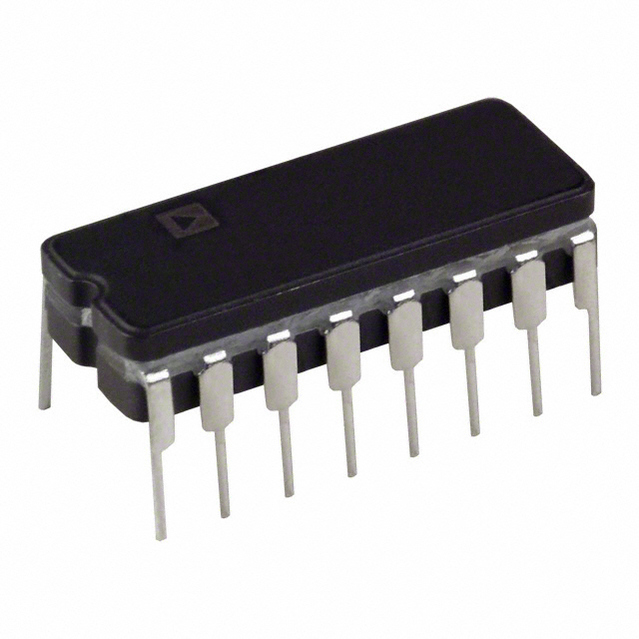

AD7524SQ

CMOS 8位缓冲乘法DAC CMOS 8-Bit Buffered Multiplying DAC

GENERAL DESCRIPTION

The AD7524 is a low cost, 8-bit monolithic CMOS DAC designed for direct interface to most microprocessors.

FEATURES

Microprocessor Compatible 6800, 8085, Z80, Etc.

TTL/CMOS Compatible Inputs

On-Chip Data Latches

Endpoint Linearity

Low Power Consumption

Monotonicity Guaranteed Full Temperature Range

Latch Free No Protection Schottky Required

APPLICATIONS

Microprocessor Controlled Gain Circuits

Microprocessor Controlled Attenuator Circuits

Microprocessor Controlled Function Generation

Precision AGC Circuits

Bus Structured Instruments
