16位, 1.25 MSPS ,单极伪差分输入,并行接口微功耗采样模拟数字转换器 16-BIT, 1.25-MSPS, UNIPOLAR PSEUDO DIFFERENTIAL INPUT, MICROPOWER SAMPLING ANALOG-TO-DIGITAL CONVERTER WITH PARALLEL INTERFACE
The ADS8405 is a 16-bit, 1.25-MHz A/D converter with an internal 4.096-V reference. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8405 offers a full 16-bit interface and an 8-bit option where data is read using two 8-bit read cycles if necessary.
The ADS8405 has a unipolar pseudo-differential input. It is available in a 48-lead TQFP package and is characterized over the industrial 40°C to 85°C temperature range.
得捷:
IC ADC 16BIT SAR 48TQFP
立创商城:
ADS8405IPFBT
德州仪器TI:
16-Bit 1.25 MSPS Unipolar Input Micro Power Sampling ADC
艾睿:
Single Channel Single ADC SAR 1.25Msps 16-bit Parallel 48-Pin TQFP T/R
安富利:
ADC Single SAR 1.25Msps 16-bit Parallel 48-Pin TQFP T/R
Verical:
Single Channel Single ADC SAR 1.25Msps 16-bit Parallel 48-Pin TQFP T/R
Newark:
# TEXAS INSTRUMENTS ADS8405IPFBT Analog to Digital Converter, 16 bit, 1.25 MSPS, Single, 4.75 V, 5.25 V
数字逻辑电平 SAR
电源电压DC 4.75V min
供电电流 31.0 mA
位数 16
耗散功率 155 mW
采样率 1.25 Msps
功耗 155 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 170 mW
输入通道数 1
电源电压Max 5.25 V
电源电压Min 4.75 V
输入电压 4.096 V
安装方式 Surface Mount
引脚数 48

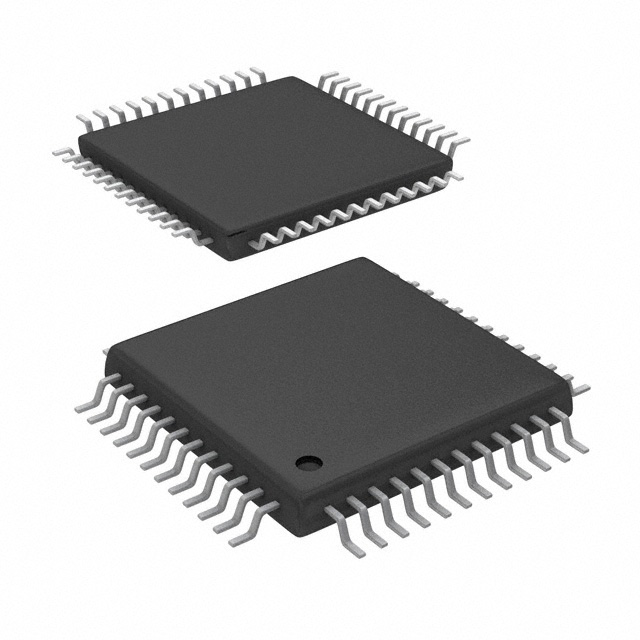

封装 TQFP-48
封装 TQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS8405IPFBT TI 德州仪器 | 当前型号 | 当前型号 |
ADS8405IPFBR 德州仪器 | 完全替代 | ADS8405IPFBT和ADS8405IPFBR的区别 |
ADS8401IPFBTG4 德州仪器 | 完全替代 | ADS8405IPFBT和ADS8401IPFBTG4的区别 |
ADS8405IBPFBT 德州仪器 | 类似代替 | ADS8405IPFBT和ADS8405IBPFBT的区别 |
