单11位, 65 MSPS的高IF采样 SINGLE 11-BIT, 65-MSPS HIGH IF SAMPLING

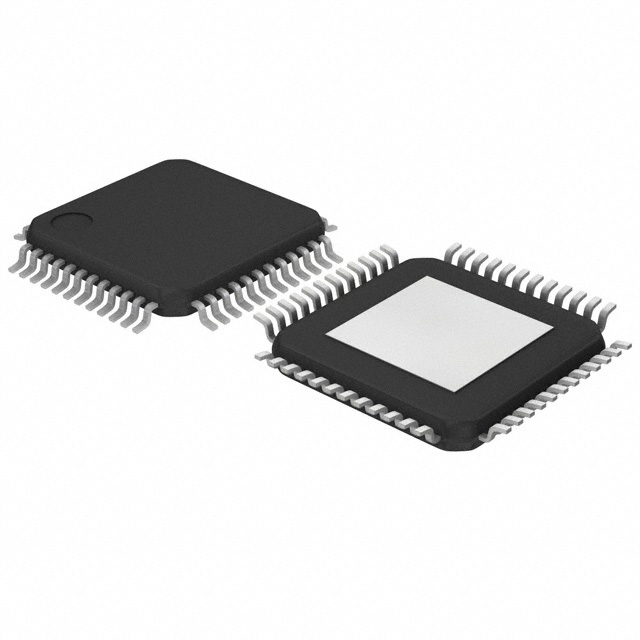

* 12-Bit Resolution * 65-MSPS Maximum Sample Rate * 2-Vpp Differential Input Range * 3.3-V Single Supply Operation * 1.8-V to 3.3-V Output Supply * 400-mW Total Power Dissipation * Two’s Complement Output Format * On-Chip S/H and Duty Cycle Adjust Circuit * Internal or External Reference * 48-Pin TQFP Package With PowerPad 7 mm x 7 mm body size * 64.5-dBFS SNR and 72-dBc SFDR at 65 MSPS and 190-MHz Input * Power-Down Mode * Single-Ended or Differential Clock * 1-GHz -3-dB Input Bandwidth * APPLICAONS * High IF Sampling Receivers * Medical Imaging * Portable Instrumentation
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS5413-11IPHP TI 德州仪器 | 当前型号 | 当前型号 |
