AD5390BSTZ-3

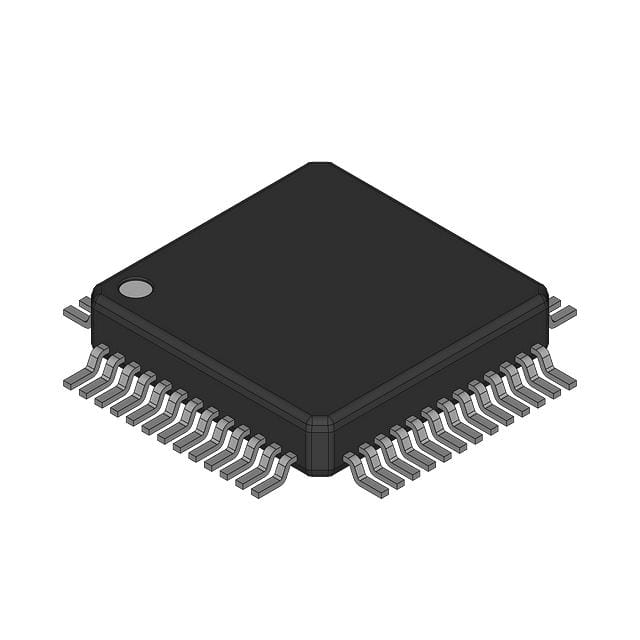

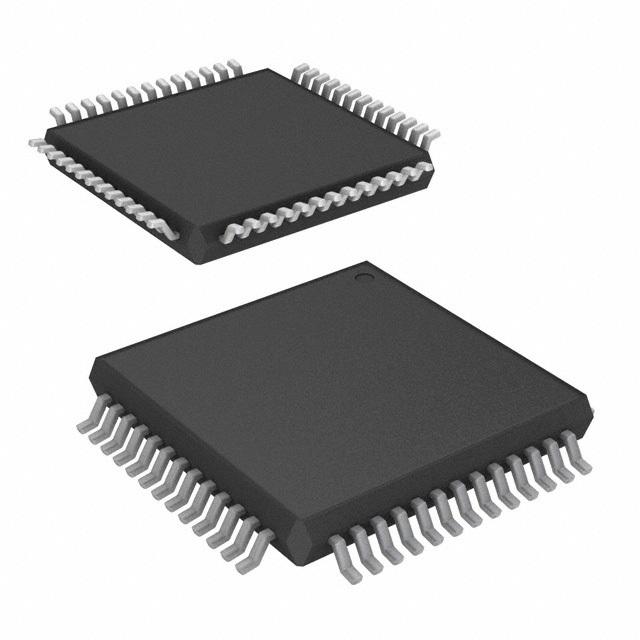

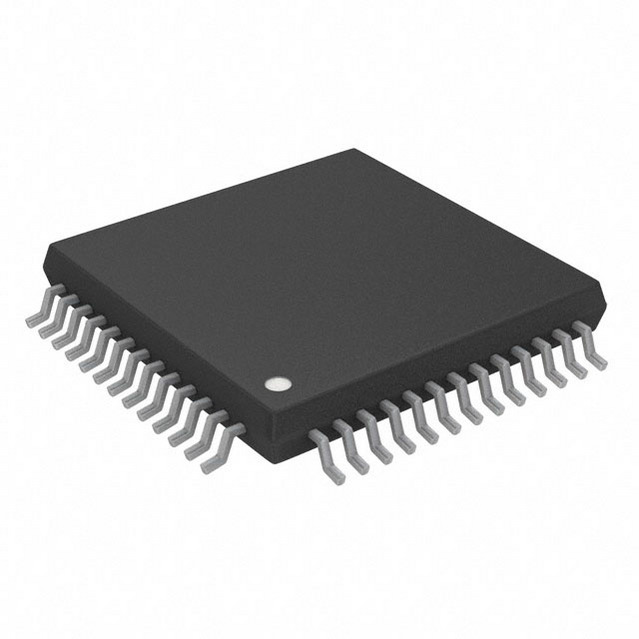

ANALOG DEVICES  AD5390BSTZ-3  数模转换器, 14 bit, 400 kSPS, 串行, 2.7V 至 3.6V, LQFP, 52 引脚

Product Details

The AD5390/AD5391 are complete single-supply, 16-channel, 14-bit and 12-bit DACs, respectively. The AD5392 is a complete single-supply, 8-channel, 14-bit DAC. The devices are available in either a 64-lead LFCSP or a 52-lead LQFP. All channels have an on-chip output amplifier with rail-to-rail operation. All devices include an internal 1.25/2.5 V, 10 ppm/°C reference, an on-chip channel monitor function that multiplexes the analog outputs to a common MON_OUT pin for external monitoring, and an output amplifier boost mode that optimizes the output amplifier slew rate.

The AD5390/AD5391/AD5392 contain a 3-wire serial interface with interface speeds in excess of 30 MHz that are compatible with SPI®, QSPI™, MICROWIRE™, and DSP interface standards and an I2C-compatible interface supporting a 400 kHz data transfer rate.

An input register followed by a DAC register provides double-buffering, allowing DAC outputs to be updated independently or simultaneously using the LDAC input. Each channel has a programmable gain and offset adjust register, letting the user fully calibrate any DAC channel.

Power consumption is typically 0.25 mA per channel.

**Applications**

.

Instrumentation and industrial control

.

Power amplifier control

.

Level setting ATE

.

Control systems

.

Microelectromechanical systems MEMs

.

Variable optical attenuators VOAs

.

Optical transceivers MSA 300, XFP

### Features and Benefits

.

AD5390: 16-channel, 14-bit voltage output DAC

.

AD5391: 16-channel, 12-bit voltage output DAC

.

AD5392: 8-channel, 14-bit voltage output DAC

.

Guaranteed monotonic

.

INL

±1 LSB max AD5391

±3 LSB max AD5390-5/AD5392-5

±4 LSB max AD5390-3/AD5392-3

.

On-chip 1.25 V/2.5 V, 10 ppm/°C reference

.

Temperature range: −40°C to +85°C

.

Rail-to-rail output amplifier

.

Power-down mode

.

Package types

.

64-lead LFCSP 9 mm × 9 mm

.

52-lead LQFP 10 mm × 10 mm

.

User interfaces

.

See data sheet for additional features
