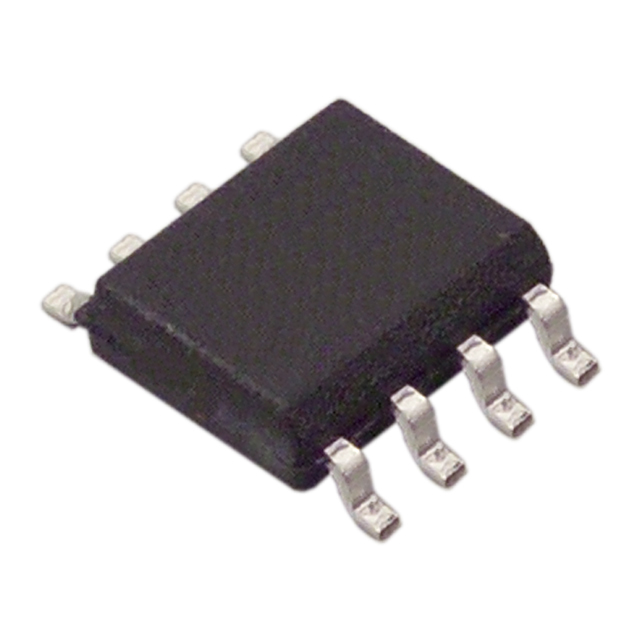

AD5541CR图片5
AD5541CR图片6

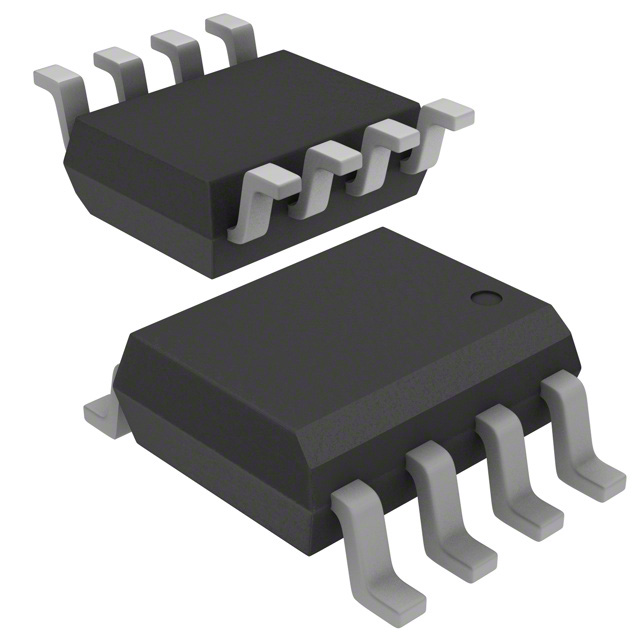

AD5541CR图片7
AD5541CR图片8

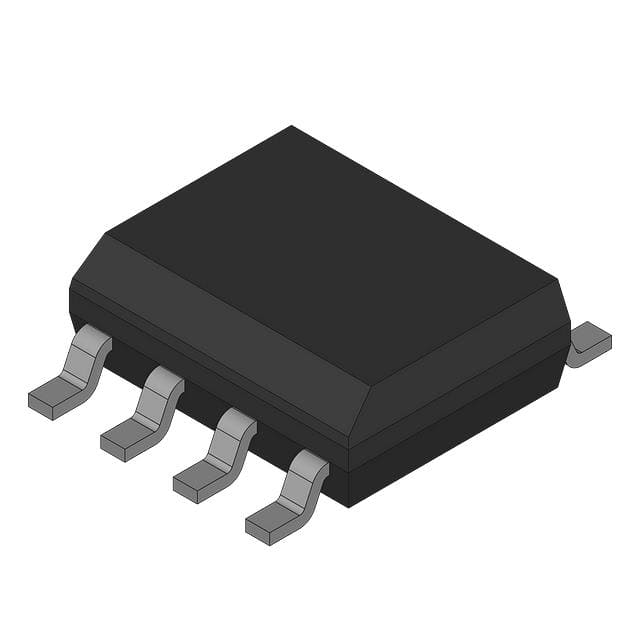

AD5541CR图片9
AD5541CR概述

5 V ,串行输入电压输出, 16位DAC 5 V, Serial-Input Voltage-Output, 16-Bit DACs

Product Details

The AD5541/AD5542 are single, 16-bit, serial input, voltage output digital-to-analog converters DACs that operate from a single 2.7 V to 5.5 V supply. The DAC output range extends from 0 V to VREF.

The DAC output range extends from 0 V to VREF and is guaranteed monotonic, providing 1 LSB INL accuracy at 16 bits without adjustment over the full specified temperature range of −40°C to +85°C. Offering unbuffered outputs, the AD5541/AD5542 achieve a 1 μs settling time with low power consumption and low offset errors. Providing a low noise performance of 11.8 nV/√Hz and low glitch, the AD5541/AD5542 is suitable for deployment across multiple end systems.

The AD5542 can be operated in bipolar mode, which generates a ±VREF output swing. The AD5542 also includes Kelvin sense connections for the reference and analog ground pins to reduce layout sensitivity.

The AD5541/AD5542 utilize a versatile 3-wire interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards. The AD5541/AD5542 are available in 8-lead and 14-lead SOIC packages.

**Product Highlights**

1. Single-Supply Operation. The AD5541 and AD5542 are fully specified and guaranteed for a single 2.7 V to 5.5 V supply.

2. Low Power Consumption. These parts consume typically 0.625 mW with a 5 V supply and 0.375 mW at 3 V.

3. 3-Wire Serial Interface.

4. Unbuffered Output Capable of Driving 60 kΩ Loads. This reduces power consumption because there is no internal buffer to drive.

5. Power-On Reset Circuitry.

**Applications**

.
Digital gain and offset adjustment
.
Automatic test equipment
.
Data acquisition systems
.
Industrial process control

### Features and Benefits

.
Full 16-bit performance
.
3 V and 5 V single-supply operation
.
Low Power 0.625 mW power dissipation
.
1 μs settling time
.
Unbuffered voltage output capable of driving 60 kΩ loads directly
.
SPI-/QSPI-/MICROWIRE-compatible interface standards
.
Power-on reset clears DAC output to 0 V unipolar mode
.
5 kV HBM ESD classification
.
Low glitch: 1.1 nV-sec
AD5541CR中文资料参数规格
技术参数

输出接口数 1

通道数 1

位数 16

耗散功率 0.00605 W

采样率 1.5 Msps

分辨率Bits 16.0

工作温度Max 85 ℃

工作温度Min -40 ℃

数模转换数DAC 1

电源电压Max 5.5 V

电源电压Min 4.5 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

长度 5 mm

宽度 4 mm

高度 1.5 mm

封装 SOIC-8

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 End of Life

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

军工级 No

海关信息

香港进出口证 NLR

数据手册

AD5541CR引脚图与封装图
AD5541CR引脚图
AD5541CR封装图
AD5541CR电路图
AD5541CR封装焊盘图
在线购买AD5541CR
型号: AD5541CR
制造商: ADI 亚德诺
描述:5 V ,串行输入电压输出, 16位DAC 5 V, Serial-Input Voltage-Output, 16-Bit DACs
替代型号AD5541CR
型号/品牌 代替类型 替代型号对比

AD5541CR

ADI 亚德诺

当前型号

当前型号

AD5541CRZ

亚德诺

完全替代

AD5541CR和AD5541CRZ的区别

AD5541LR-REEL7

亚德诺

完全替代

AD5541CR和AD5541LR-REEL7的区别

AD5541LRZ

亚德诺

类似代替

AD5541CR和AD5541LRZ的区别
