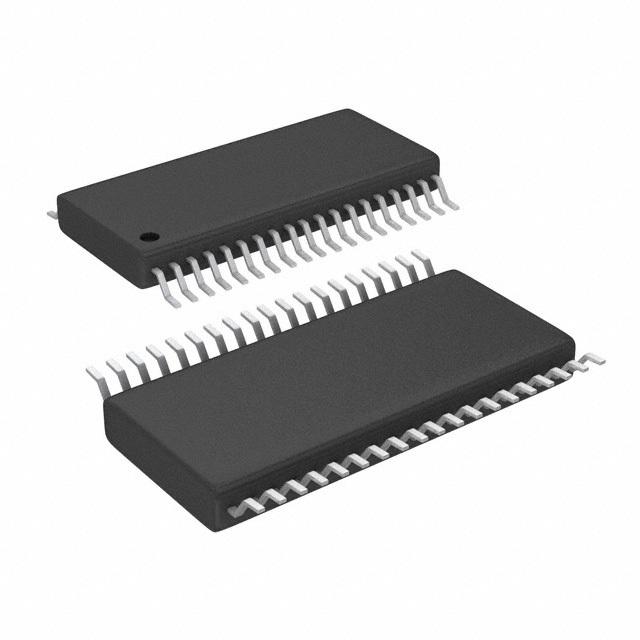

ADS8698IDBT图片1
ADS8698IDBT图片2
ADS8698IDBT图片3
ADS8698IDBT图片4
ADS8698IDBT图片5
ADS8698IDBT图片6
ADS8698IDBT概述

模数转换器 - ADC 18-Bit 500kSPS 8-Channel SAR ADC With Bipolar Inputs Off 5V Supply 38-TSSOP -40 to 125

The ADS8694 and ADS8698 are 4- and 8-channel, integrated data acquisition systems based on a 18-bit successive approximation SAR analog-to-digital converter ADC, operating at a throughput of 500 kSPS. The devices feature integrated analog front-end circuitry for each input channel with overvoltage protection up to ±20 V, a 4- or 8-channel multiplexer with automatic and manual scanning modes, and an on-chip, 4.096-V reference with low temperature drift. Operating on a single 5-V analog supply, each input channel on the devices can support true bipolar input ranges of ±10.24 V, ±5.12 V, and ±2.56 V, as well as unipolar input ranges of 0 V to 10.24 V and 0 V to 5.12 V. The gain of the analog front-end for all input ranges is accurately trimmed to ensure a high dc precision. The input range selection is software-programmable and independent for each channel. The devices offer a 1-MΩ constant resistive input impedance irrespective of the selected input range.

The ADS8694 and ADS8698 offer a simple SPI-compatible serial interface to the digital host and also support daisy-chaining of multiple devices. The digital supply operates from 1.65 V to 5.25 V, enabling direct interface to a wide range of host controllers.

ADS8698IDBT中文资料参数规格
技术参数

位数 18

采样率 500 ksps

功耗 65 mW

模数转换数ADC 1

输入数 8

工作温度Max 125 ℃

工作温度Min -40 ℃

输入通道数 8

封装参数

引脚数 38

封装 TSSOP-38

外形尺寸

封装 TSSOP-38

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99
