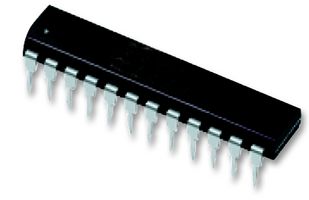

ANALOG DEVICES AD7892BNZ-1 模数转换器, 12 bit, 500 kSPS, 单, 5 V, DIP
Do you need to perform calculations on real world physical signals such as light or temperature? Then use this ADC from Analog Devices to convert those analog signals to digital data that a computer can read! It has a single-ended input signal. This device is based on SAR architecture. Its maximum power dissipation is 90 mW. This device"s digital interface is parallel|serial 3-wire. This ADC has a resolution of 12bit. This ADC has an input voltage of ±5V/±10 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
数字逻辑电平 SAR
电源电压DC 5.00V max
供电电流 18.0 mA
通道数 1

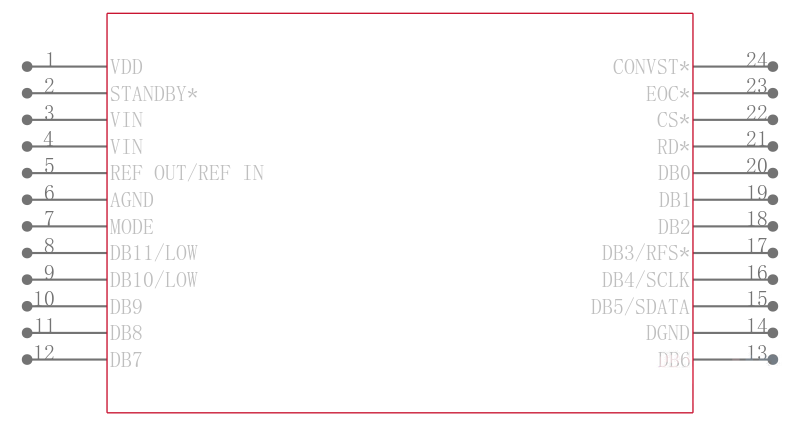

针脚数 24
位数 12
耗散功率 60 mW
采样率 500 ksps
功耗 60 mW
分辨率Bits 12.0
输入阻抗 8.00 kΩ
模数转换数ADC 1
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 90 mW
输入通道数 1
电源电压Max 5 V
安装方式 Through Hole
引脚数 24

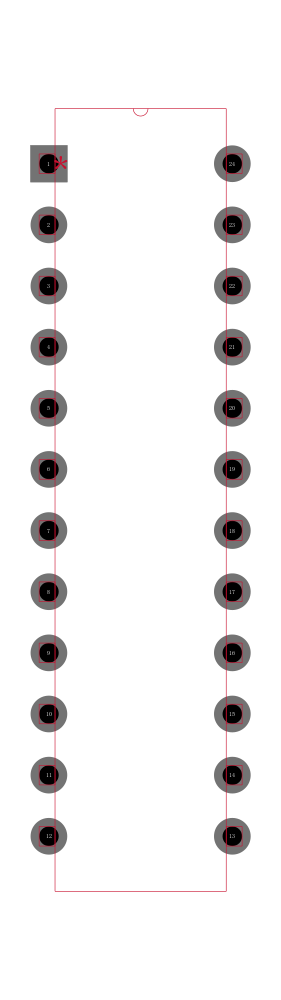

封装 DIP-24
长度 31.75 mm
宽度 6.35 mm
高度 3.3 mm
封装 DIP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2016/06/20
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD7892BNZ-1 ADI 亚德诺 | 当前型号 | 当前型号 |
AD7892BN-1 亚德诺 | 功能相似 | AD7892BNZ-1和AD7892BN-1的区别 |
MX7572JN05+ 美信 | 功能相似 | AD7892BNZ-1和MX7572JN05+的区别 |
AD7892SQ-1 亚德诺 | 功能相似 | AD7892BNZ-1和AD7892SQ-1的区别 |
