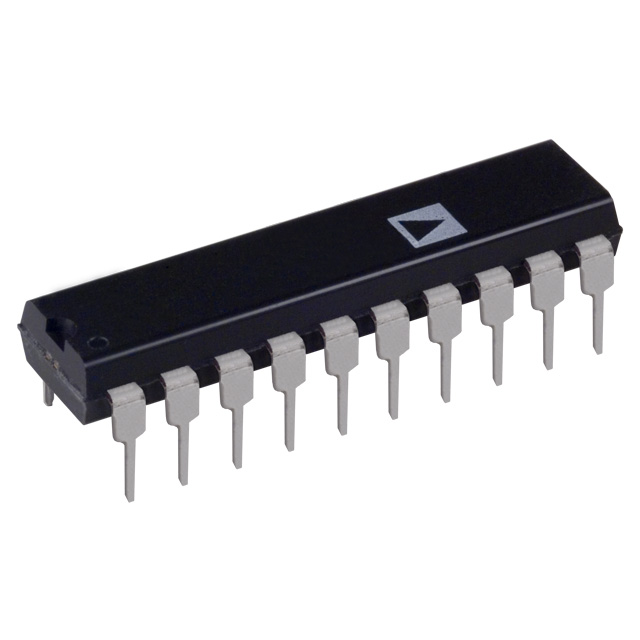

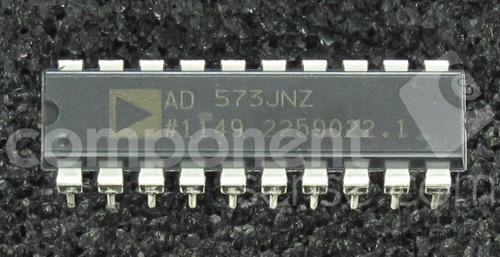

ANALOG DEVICES AD573JNZ 芯片, 模数转换器, 10位, DIP-20
10 位模数转换器 1 输入 1 SAR 20-PDIP
得捷:
IC ADC 10BIT SAR 20DIP
立创商城:
AD573JNZ
e络盟:
芯片, 模数转换器, 10位, DIP-20
艾睿:
Use this specially engineered AD573JNZ ADC from Analog Devices to easily convert a time-varying analog signal to a digital number representation of the amplitude of that signal. Its maximum power dissipation is 800 mW. This device is based on SAR architecture. It has a single-ended input signal. This device&s;s digital interface is parallel. This ADC has a resolution of 10bit. This ADC has an input voltage of 10 V|±5V. Its typical dual supply voltage is -15/5 V, with a minimum of -11.4/4.5 V and maximum of -16.5/7 V. This ADC has a minimum operating temperature of 0 °C and a maximum of 70 °C.
Jameco:
Analog to Digital Converter Single SAR 10-Bit Parallel 20-Pin Plastic DIP N
安富利:
ADC Single SAR 10-bit Parallel 20-Pin PDIP N
Chip1Stop:
Single Channel Single ADC SAR 10-bit Parallel 20-Pin PDIP N Tube
Verical:
Single Channel Single ADC SAR 10-bit Parallel 20-Pin PDIP N Tube
Newark:
# ANALOG DEVICES AD573JNZ Analog to Digital Converter, 10 bit, Single, 4.5 V, 16.5 V, DIP
罗切斯特:
ADC, Successive Approximation, 10-Bit, 1 Channel, Parallel, Word Access, Bipolar, PDIP20
DeviceMart:
IC ADC 10BIT SAR REGISTER 20-DIP
Win Source:
IC ADC 10BIT SAR REGISTER 20-DIP
数字逻辑电平 SAR
电源电压DC 4.50V min
供电电流 15.0 mA
电路数 1
通道数 1

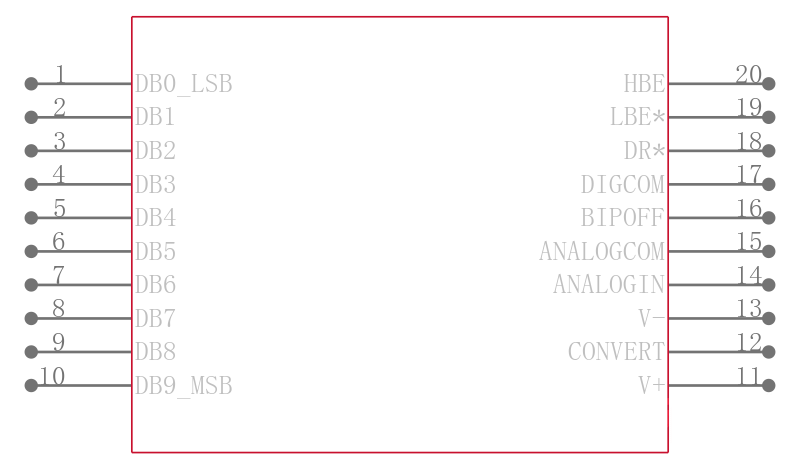

针脚数 20
位数 10
耗散功率 800 W
采样率 50 ksps
分辨率Bits 10.0
模数转换数ADC 1
输入数 1
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 800 mW
输入通道数 1
电源电压Max 16.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 20

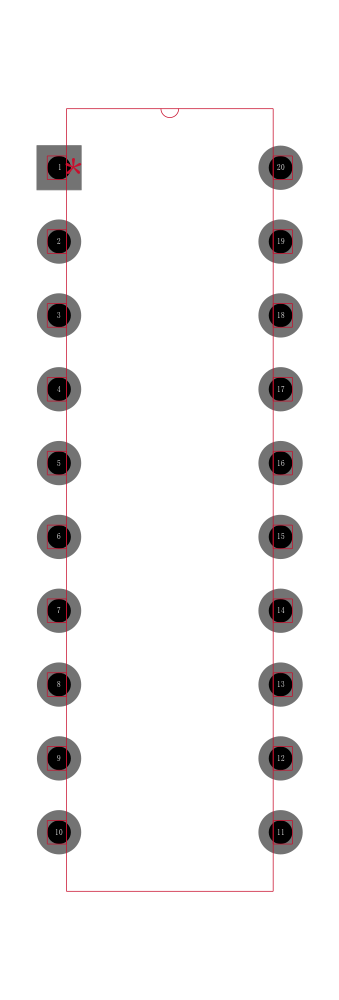

封装 DIP-20
高度 3.3 mm
封装 DIP-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD573JNZ ADI 亚德诺 | 当前型号 | 当前型号 |
AD573KD 亚德诺 | 完全替代 | AD573JNZ和AD573KD的区别 |
AD573JD 亚德诺 | 完全替代 | AD573JNZ和AD573JD的区别 |
AD573KN 亚德诺 | 完全替代 | AD573JNZ和AD573KN的区别 |
