AD5544ARS

四，电流输出，串行输入16位/ 14位DAC Quad, Current-Output, Serial-Input 16-/14-Bit DACs

Product Details

The AD5544/AD5554 quad, 16-/14-bit, current output, digital-to-analog converters DACs are designed to operate from 2.7 V to 5.5 V supply range.

The applied external reference input voltage VREFX determines the full-scale output current. Integrated feedback resistors RFB provide temperature-tracking, full-scale voltage outputs when combined with an external I-to-V precision amplifier.

A double-buffered serial data interface offers high speed, 3-wire, SPI- and microcontroller-compatible inputs using serial data in SDI, a chip select CS, and clock CLK signals. In addition, a serial data out pin SDO allows for daisy-chaining when multiple packages are used. A common, level-sensitive, load DAC strobe LDAC input allows the simultaneous update of all DAC outputs from previously loaded input registers. Additionally, an internal power-on reset forces the output voltage to 0 at system turn-on. An MSB pin allows system reset assertion RS to force all registers to zero code when MSB = 0, or to half-scale code when MSB = 1.

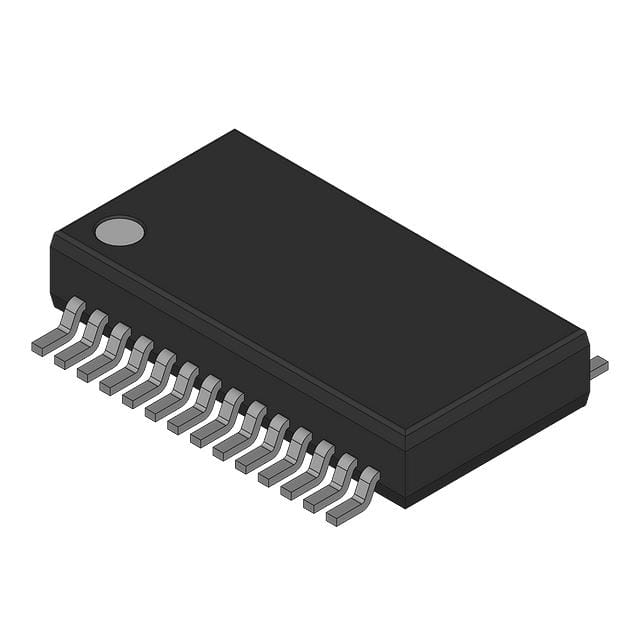

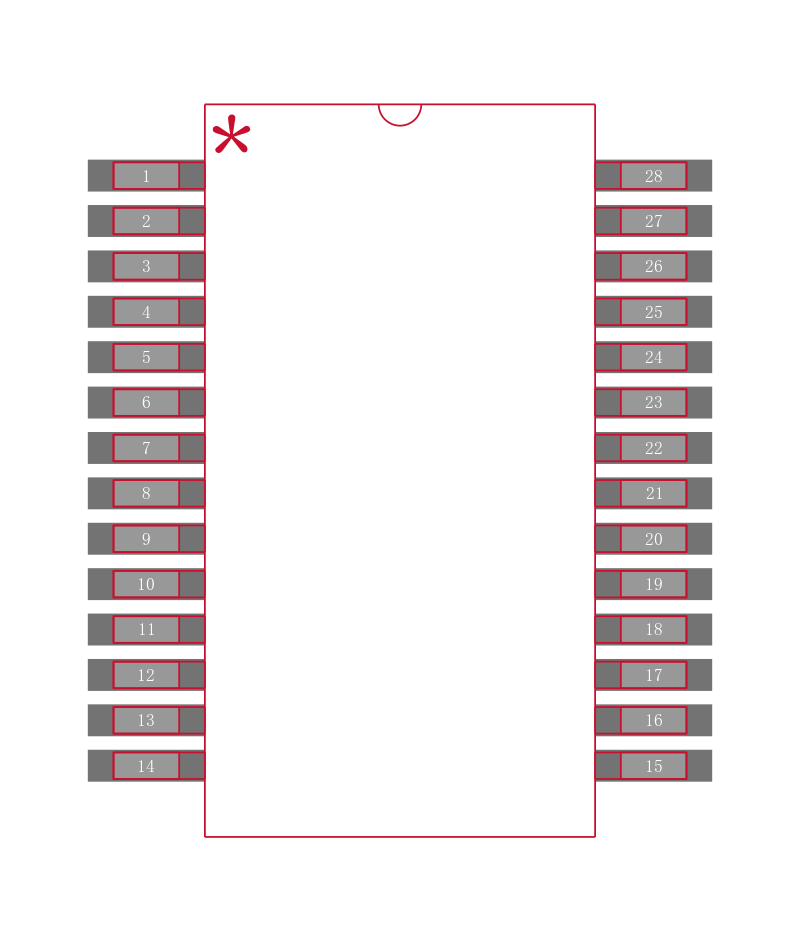

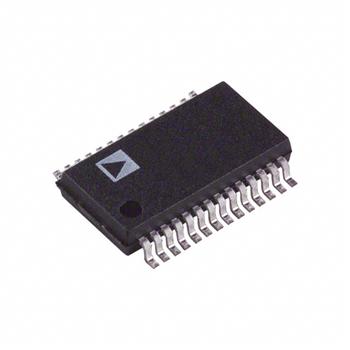

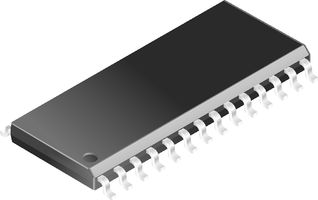

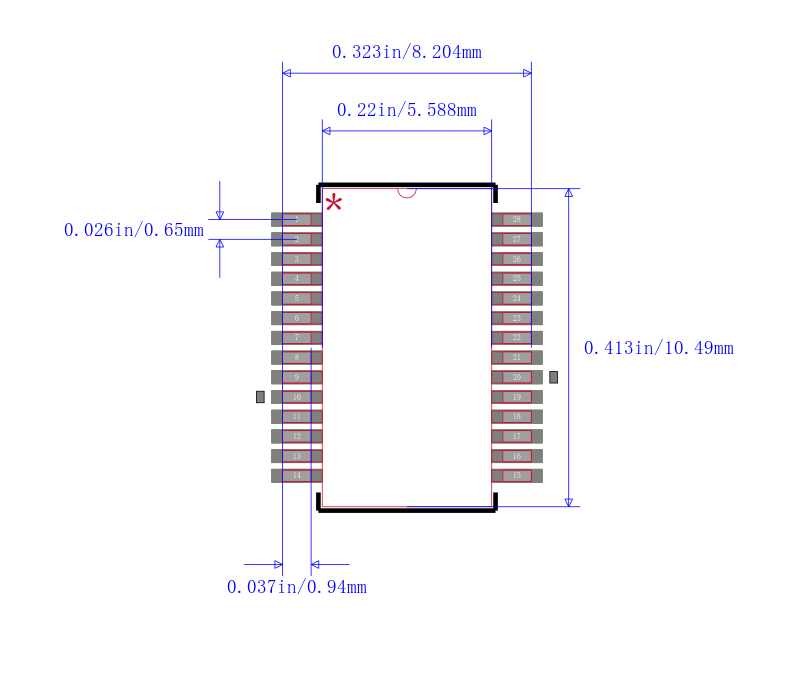

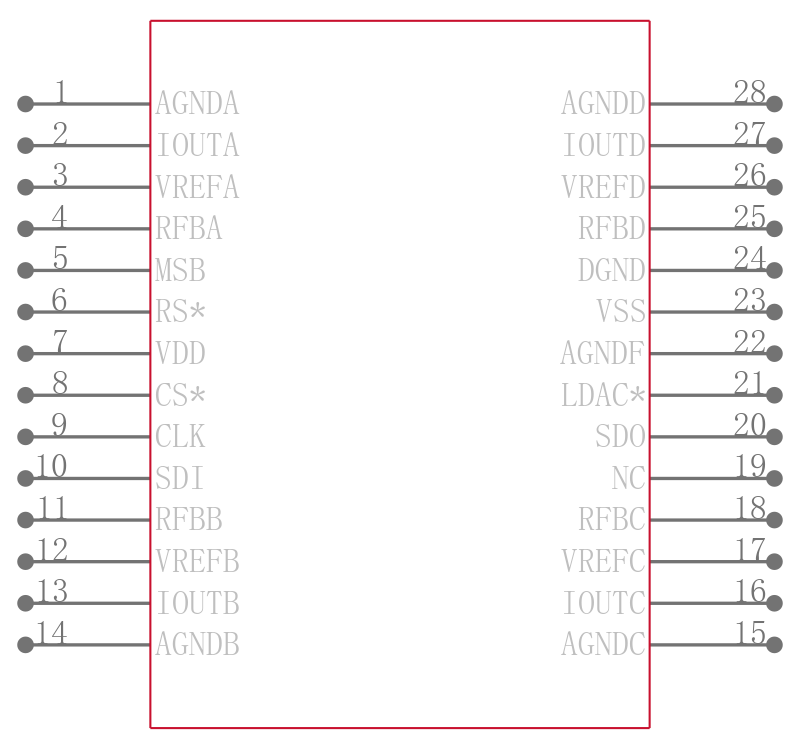

The AD5544 is packaged in the compact 28-lead SSOP and 32-lead LFCSP.  The AD5554 is  packaged in the compact 28-lead SSOP.

**Applications**

.

Automatic test equipment

.

Instrumentation

.

Digitally controlled calibration

### Features and Benefits

.

16-bit resolution INL of ±1 LSB B Grade

.

2 mA full-scale current ± 20%, with VREF = ±10 V

.

0.9 μs settling time to ±0.1%

.

12 MHz multiplying bandwidth

.

Midscale glitch of −1 nV-sec

.

Midscale or zero-scale reset

.

Four separate, 4-quadrant multiplying reference inputs

.

Compact 28-lead SSOP and 32-lead LFCSP

.

See data sheet for additional features

AD5544-EP supports defense and aerospace applications AQEC standard

.

Download AD5544-EP Data Sheet pdf

.

Military temperature range −55°C to +125°C

.

Controlled manufacturing baseline

.

One assembly/test site

.

One fabrication site

.

Enhanced product change notification

.

Qualification data available on request

.

V62/12663 DSCC Drawing Number
