AD9284BCPZRL7-250

IC ADC 8Bit 250MSPS 1.8V 48LFCSP

Product Details

The AD9284 is a dual 8-bit, monolithic sampling, analog-to-digital converter ADC that supports simultaneous operation and is optimized for low cost, low power, and ease of use. Each ADC operates at up to a 250 MSPS conversion rate with outstanding dynamic performance.

The ADC requires a single 1.8 V supply and an encode clock for full performance operation. No external reference components are required for many applications. The digital outputs are LVDS compatible.

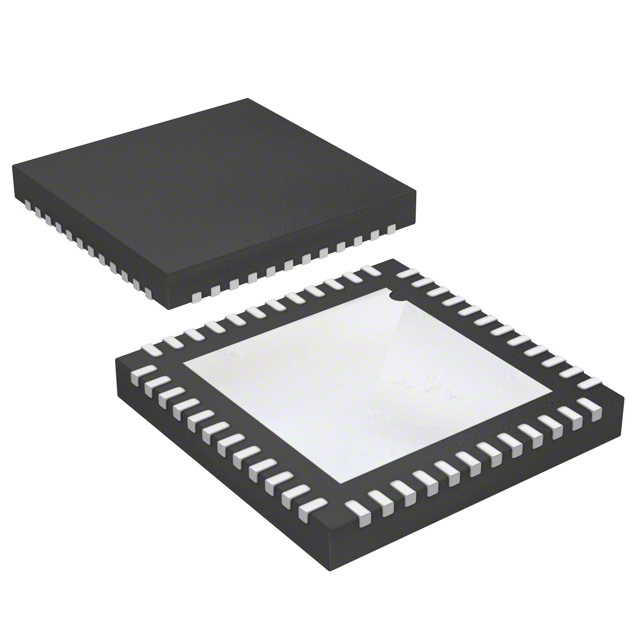

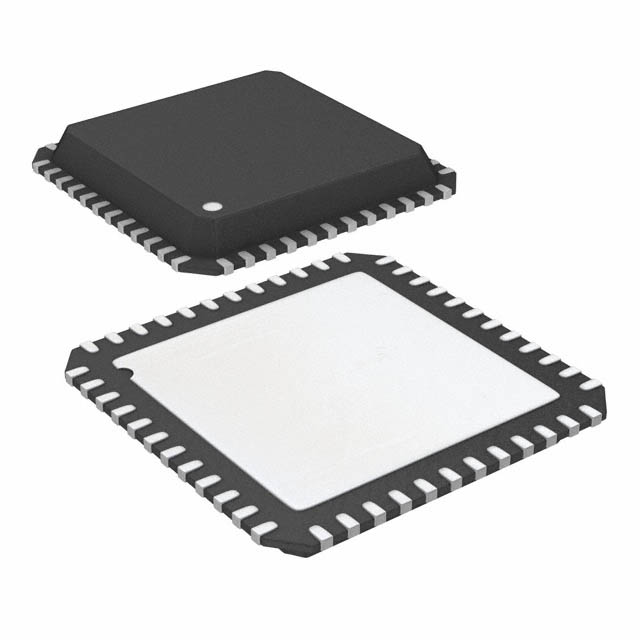

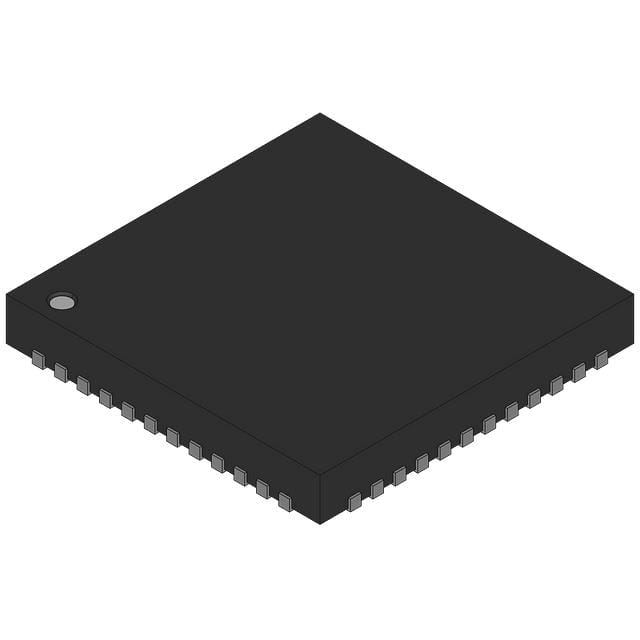

The AD9284 is available in a Pb-free, 48-lead LFCSP that is specified over the industrial temperature range of −40°C to +85°C.

**PRODUCT HIGHLIGHTS**

1. Integrated dual 8-bit , 250 MSPS ADC.

2. Single 1.8 V supply operation with LVDS outputs.

3. Power-down option that is controlled through a pin programmable setting.

**APPLICATIONS**

.

Communications

.

Diversity radio systems

.

I/Q demodulation systems

.

Battery-powered instruments

.

Handheld scope meters

.

Low cost digital oscilloscopes

.

OTS: video over fiber

### Features and Benefits

.

Single 1.8 V supply operation

.

SNR: 49.3 dBFS at 200 MHz input at 250 MSPS

.

SFDR: 65 dBc at 200 MHz input at 250 MSPS

.

Low power: 314 mW at 250 MSPS

.

On-chip reference and track-and-hold

.

1.2 V p-p analog input range each channel

.

Differential input with 500 MHz bandwidth

.

DNL: ±0.2 LSB

.

Serial port control options

Offset binary, Gray code, or twos complement data format

Optional clock duty cycle stabilizer

Built-in selectable digital test pattern generation

.

Pin-programmable power-down function

.

Available in 48-lead LFCSP
