AD9778ABSVZ概述

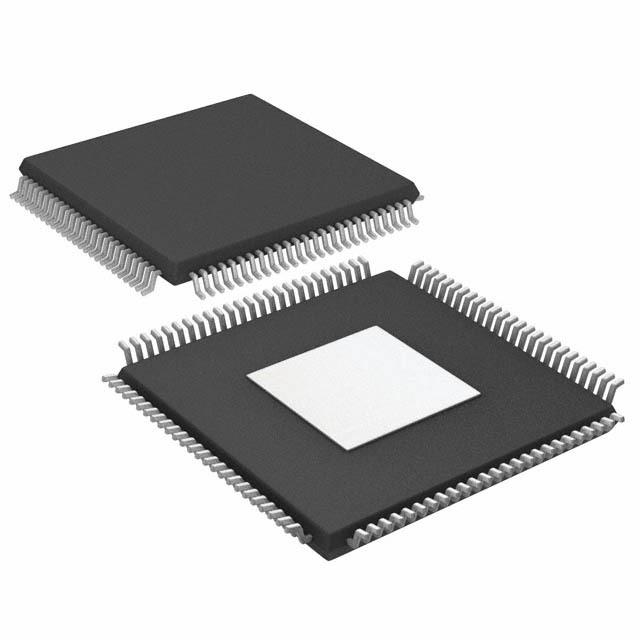

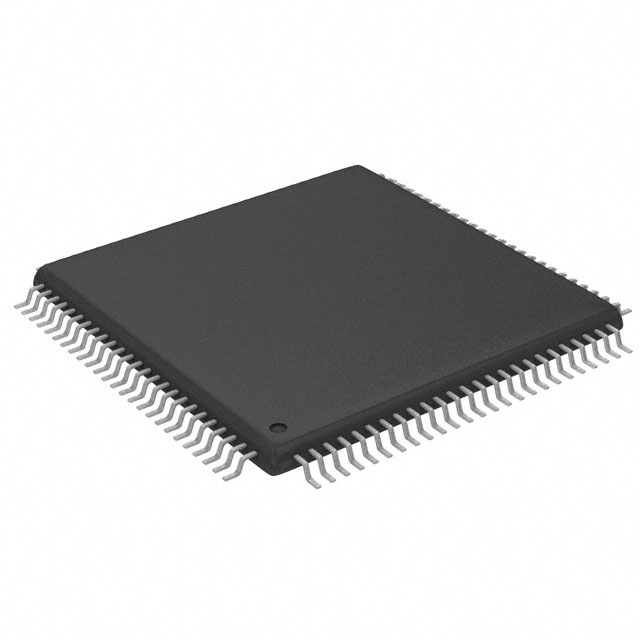

ANALOG DEVICES  AD9778ABSVZ  数模转换器, 14 bit, 1 GSPS, 差分, 3.13V 至 3.47V, TQFP, 100 引脚

Product Details

The AD9776A/AD9778A/AD9779A are dual, 12-/14-/16-bit, high dynamic range digital-to-analog converters DACs that provide a sample rate of 1 GSPS, permitting a multicarrier generation up to the Nyquist frequency. They include features optimized for direct conversion transmission applications, including complex digital modulation and gain and offset compensation. The DAC outputs are optimized to interface seamlessly with analog quadrature modulators such as the ADL537x FMOD series from Analog Devices, Inc. A 3-wire interface provides for programming/readback of many internal parameters. Full-scale output current can be programmed over a range of 10 mA to 30 mA. The devices are manufactured on an advanced 0.18 μm CMOS process and operate on 1.8 V and 3.3 V supplies for a total power consumption of 1.0 W. They are enclosed in a 100-lead thin quad flat package TQFP.

**Product Highlights**

1. Ultralow noise and intermodulation distortion IMD enable high quality synthesis of wideband signals from baseband to high intermediate frequencies.

2. A proprietary DAC output switching technique enhances dynamic performance.

3. The current outputs are easily configured for various single-ended or differential circuit topologies.

4. CMOS data input interface with adjustable setup and hold.

5. Novel 2×, 4×, and 8× interpolator/coarse complex modulator allows carrier placement anywhere in DAC bandwidth.

**Applications**

.
Wireless infrastructure W-CDMA, CDMA2000, TD-SCDMA, WiMax, GSM, LTE
.
Digital high or low IF synthesis
.
Internal digital upconversion capability
.
Transmit diversity
.
Wideband communications: LMDS/MMDS, point-to-point

### Features and Benefits

.
Low power: 1.0 W @ 1 GSPS, 600 mW @ 500 MSPS, full operating conditions
.
Single carrier W-CDMA ACLR = 80 dBc @ 80 MHz IF
.
Analog output: adjustable 8.7 mA to 31.7 mA, RL = 25 Ω to 50 Ω
.
Novel 2×, 4×, and 8× interpolator/coarse complex modulator allows carrier placement anywhere in DAC bandwidth
.
Auxiliary DACs allow control of external VGA and offset control
.
Multiple chip synchronization interface
.
High performance, low noise PLL clock multiplier
.
Digital inverse sinc filter
.
100-lead, exposed paddle TQFP
AD9778ABSVZ中文资料参数规格
技术参数

通道数 2

针脚数 100

位数 14

耗散功率 300 mW

采样率 1.00 GHz

分辨率Bits 14.0

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 1000 mW

数模转换数DAC 2

电源电压 3.13V ~ 3.47V

电源电压Max 3.47 V

电源电压Min 3.13 V

封装参数

安装方式 Surface Mount

引脚数 100

封装 TQFP-100

外形尺寸

高度 1 mm

封装 TQFP-100

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 Aerospace and Defense, Radar

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

军工级 No

REACH SVHC版本 2016/06/20

海关信息

ECCN代码 EAR99

数据手册

AD9778ABSVZ引脚图与封装图

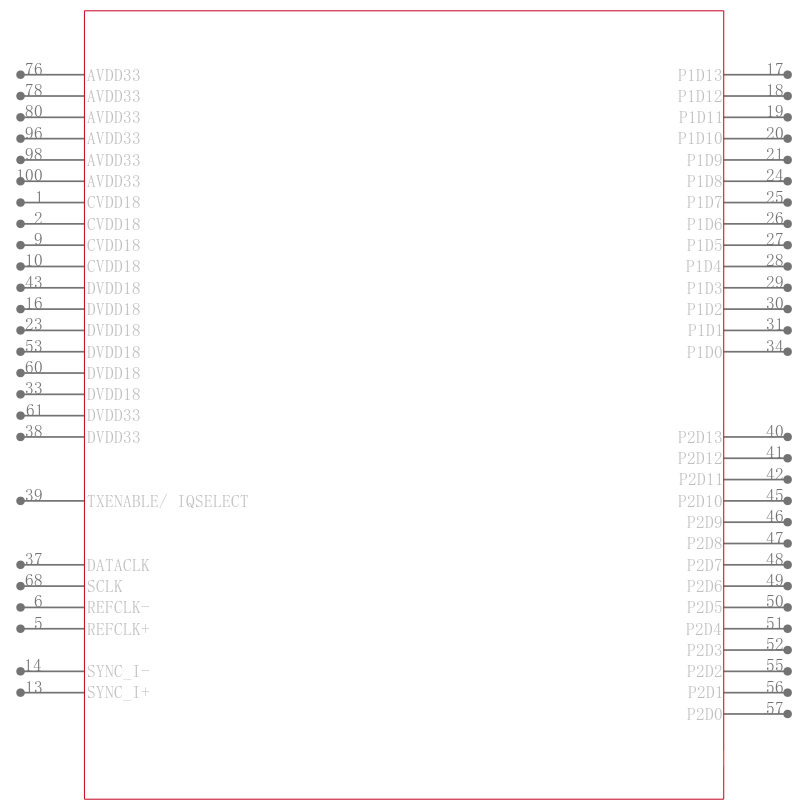

AD9778ABSVZ引脚图

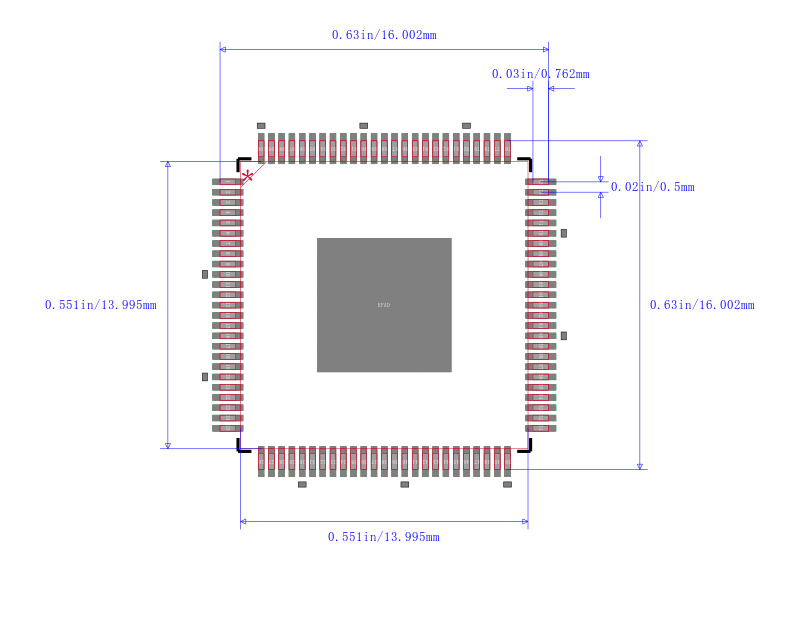

AD9778ABSVZ封装图
AD9778ABSVZ电路图
AD9778ABSVZ封装焊盘图
在线购买AD9778ABSVZ
型号: AD9778ABSVZ
制造商: ADI 亚德诺
描述:ANALOG DEVICES  AD9778ABSVZ  数模转换器, 14 bit, 1 GSPS, 差分, 3.13V 至 3.47V, TQFP, 100 引脚
