AD7568BPZ

ANALOG DEVICES  AD7568BPZ  数模转换器, 八路, 12 bit, 4.75V 至 5.25V, PLCC, 44 引脚

Product Details

The AD7568 contains eight 12-bit DACs in one monolithic device. The DACs are standard current output with seperate VREF, IOUT1, IOUT2 and RFB terminals.

The AD7568 is a serial input device. Data is loaded using FSIN, CLKIN and SDIN. One address pin, A0, sets up a device address, and this feature may be used to simplify device loading in a multi-DAC environment.

All DACs can be simultaneously updated using the asynchronous LDAC input, and they can be cleared by asserting the asynchronous CLR input.

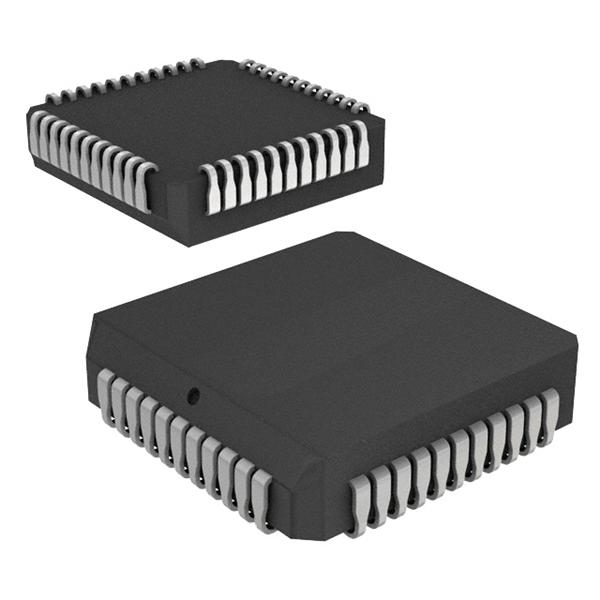

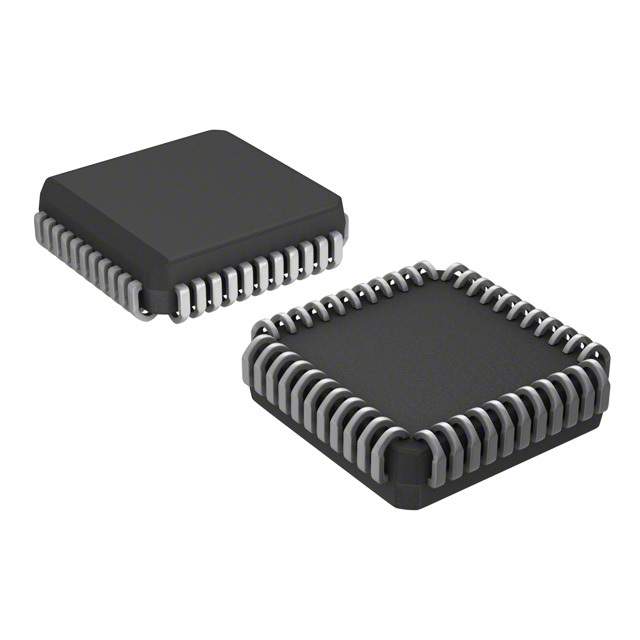

The AD7568 is housed in a space-saving 44-pin plastic quad flatback and 44-lead PLCC.

**APPLICATIONS**

.

Process Control

.

Automatic Test Equipment

.

General Purpose Instrumentation

### Features and Benefits

.

Eight 12-Bit DACs in One Package

.

4-Quadrant Multiplication

.

Separate References

.

Single +5 V Supply

.

Low Power: 1 mW

.

Versatile Serial Interface

.

Simultaneous Update Capability

.

Reset Function

.

44-Pin PQFP and PLCC
