AD977ABRSZ

ANALOG DEVICES  AD977ABRSZ  模数转换器, 16 bit, 200 kSPS, 单, 4.75 V, 5.25 V, SSOP

Product Details

The AD977/AD977A is a high speed, low power 16-bit A/D converter that operates from a single 5 V supply. The AD977A has a throughput rate of 200 kSPS whereas the AD977 has a throughput rate of 100 kSPS. Each part contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference, and a high speed serial interface. The ADC is factory calibrated to minimize all linearity errors. The AD977/AD977A is specified for full scale bipolar input ranges of ±10 V, ±5 V and ±3.3 V, and unipolar ranges of 0 V to 10 V, 0 V to 5 V and 0 V to 4 V.

### Features and Benefits

.

Fast 16-Bit ADC 200 kSPS Throughput Rate

.

Single 5 V Supply Operation

.

Power Dissipation 100 mW Max

.

Power-Down Mode 50 µW

.

Choice of External or Internal 2.5 V Reference

.

High Speed Serial Interface

.

Input Ranges:

Unipolar; 0 V–10 V, 0 V–5 V and

0 V–4 V

Bipolar;  ±10 V, ±5 V and ±3.3 V

.

On-Chip Clock

.

20-Lead Skinny DIP or SOIC Package

.

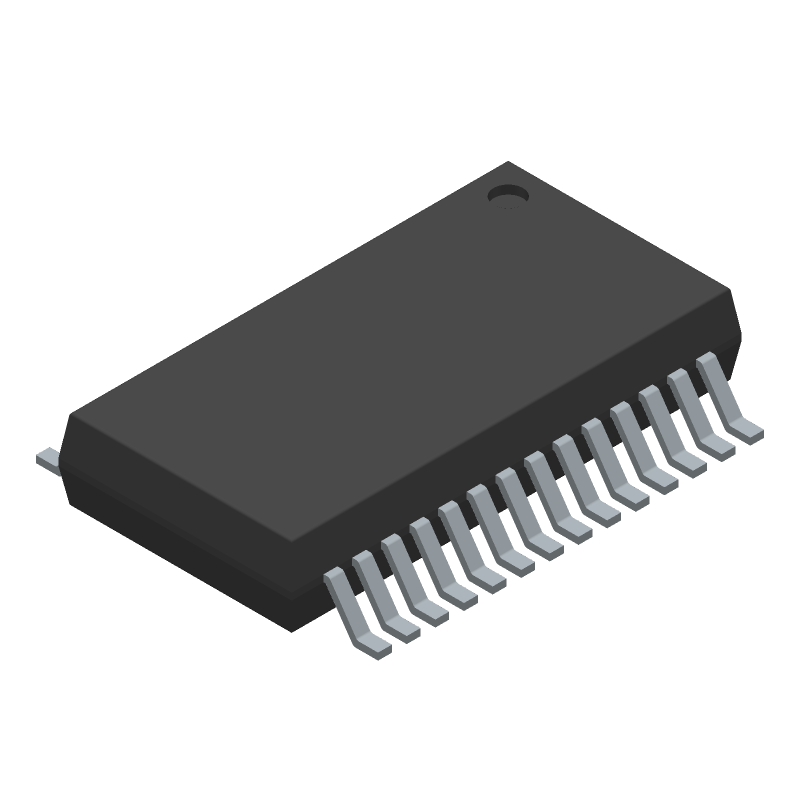

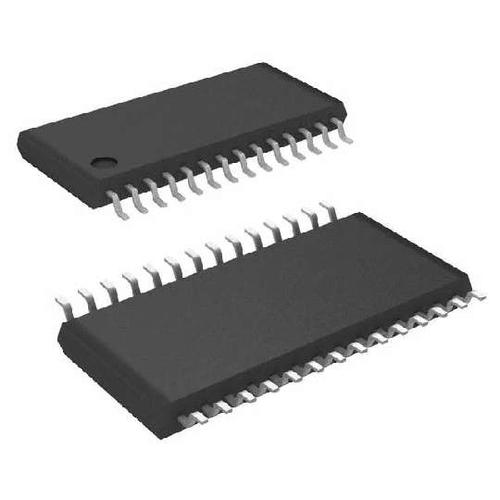

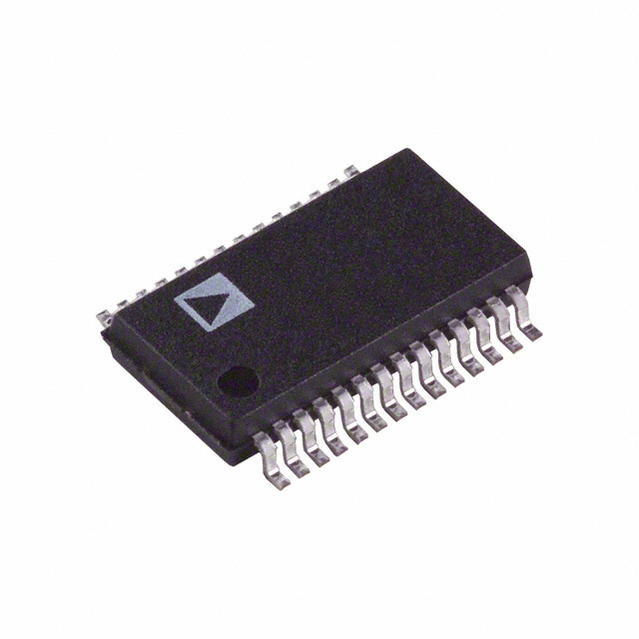

28-Lead Skinny SSOP Package
