ADC3244IRGZT

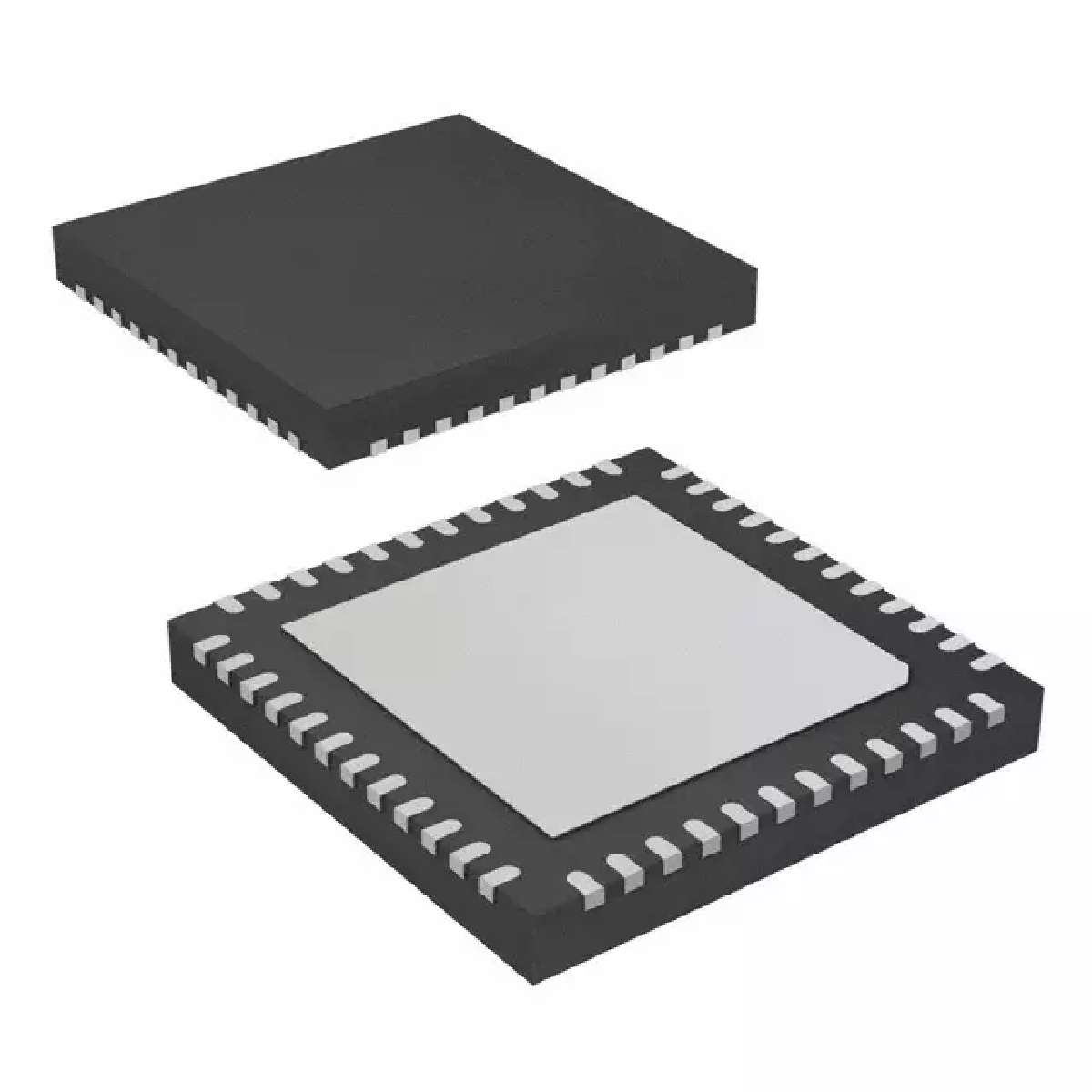

ADC3244IRGZT图片1
ADC3244IRGZT图片2
ADC3244IRGZT图片3
ADC3244IRGZT图片4
ADC3244IRGZT图片5
ADC3244IRGZT图片6
ADC3244IRGZT图片7
ADC3244IRGZT图片8
ADC3244IRGZT概述

双通道 14 位 125MSPS 模数转换器 ADC 48-VQFN -40 to 85

The ADC324x are a high-linearity, ultra-low power, dual-channel, 14-bit, 25-MSPS to 125-MSPS, analog-to-digital converter ADC family. The devices are designed specifically to support demanding, high input frequency signals with large dynamic range requirements. An input clock divider allows more flexibility for system clock architecture design and the SYSREF input enables complete system synchronization. The ADC324x family supports serial low-voltage differential signaling LVDS in order to reduce the number of interface lines, thus allowing for high system integration density. The serial LVDS interface is two-wire, where each ADC data are serialized and output over two LVDS pairs. An internal phase-locked loop PLL multiplies the incoming ADC sampling clock to derive the bit clock that is used to serialize the 14-bit output data from each channel. In addition to the serial data streams, the frame and bit clocks are also transmitted as LVDS outputs.

ADC3244IRGZT中文资料参数规格
技术参数

位数 14

耗散功率 232 mW

采样率 125 Msps

功耗 232 mW

模数转换数ADC 2

输入数 2

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 325 mW

输入通道数 2

封装参数

引脚数 48

封装 VQFN-48

外形尺寸

封装 VQFN-48

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 3A991.c.3

数据手册

ADC3244IRGZT引脚图与封装图
ADC3244IRGZT引脚图
ADC3244IRGZT封装图
ADC3244IRGZT封装焊盘图
在线购买ADC3244IRGZT
型号: ADC3244IRGZT
制造商: TI 德州仪器
描述:双通道 14 位 125MSPS 模数转换器 ADC 48-VQFN -40 to 85
替代型号ADC3244IRGZT
型号/品牌 代替类型 替代型号对比

ADC3244IRGZT

TI 德州仪器

当前型号

当前型号

ADC3244IRGZR

德州仪器

完全替代

ADC3244IRGZT和ADC3244IRGZR的区别

ADC3244IRGZ25

德州仪器

完全替代

ADC3244IRGZT和ADC3244IRGZ25的区别

ADC3242IRGZT

德州仪器

类似代替

ADC3244IRGZT和ADC3242IRGZT的区别
