AD7984BCPZ-RL7

ANALOG DEVICES  AD7984BCPZ-RL7  模数转换器, 18 bit, 1.33 MSPS, 单, 2.375 V, 2.625 V, LFCSP

Product Details

The AD7984 is an 18-bit, successive approximation, analog-to-digital converter ADC that operates from a single power supply, VDD. It contains a low power, high speed, 18-bit sampling ADC and a versatile serial interface port. On the CNV rising edge, the AD7984 samples the voltage difference between the IN+ and IN− pins. The voltages on these pins usually swing in opposite phases between 0 V and VREF. The reference voltage, REF, is applied externally and can be set independent of the supply voltage, VDD.

The SPI-compatible serial interface also features the ability, using the SDI input, to daisy-chain several ADCs on a single 3-wire bus and provides an optional busy indicator. It is compatible with 1.8 V, 2.5 V, 3 V, and 5 V logic, using the separate VIO supply.

The AD7984 is available in a 10-lead MSOP or a 10-lead QFN LFCSP with operation specified from −40°C to +85°C.

**Applications**

.

Battery-powered equipment

.

Data acquisition systems

.

Medical instruments

.

Seismic data acquisition systems

### Features and Benefits

.

18-bit resolution with no missing codes

.

Throughput: 1.33 MSPS

.

Low power dissipation: 10.5 mW at 1.33 MSPS

.

INL: ±2.25 LSB maximum

.

Dynamic range: 99.7 dB typical

.

True differential analog input range: ±VREF 0 V to VREF

with VREF between 2.9 V to 5.0 V

Allows use of any input range

Easy to drive with the ADA4941

.

No pipeline delay

.

Single-supply 2.5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface

.

Serial interface SPI-/QSPI™-/MICROWIRE™-/DSP-compatible

.

Ability to daisy-chain multiple ADCs and busy indicator

.

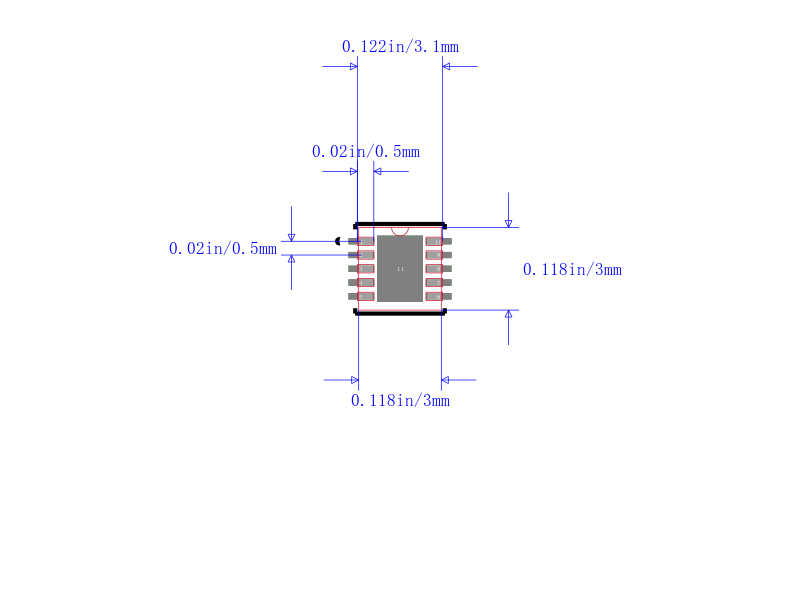

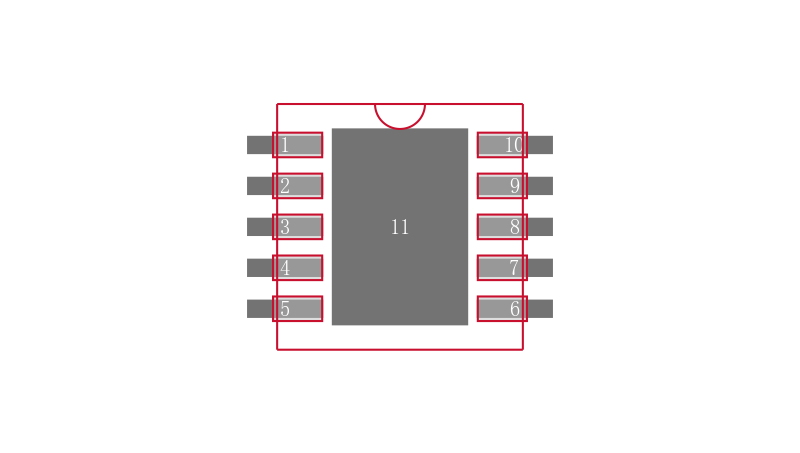

10-lead MSOP MSOP-8 size and 10-lead 3 mm × 3 mm QFN LFCSP, SOT-23 size
