ADS5422Y/250

14 位、62MSPS 模数转换器 ADC 64-LQFP -40 to 85

The ADS5422 is a high-dynamic range, 14-bit, 62MSPS, pipelined Analog-to-Digital Converter ADC. It includes a high-bandwidth linear track-and-hold amplifier that gives good spurious performance up to the Nyquist rate. The clock input can accept a low-level differential sine wave or square wave signal down to 0.5VPP, further improving the Signal-to-Noise Ratio SNR performance.

The ADS5422 has a 4VPP differential input range 2VPP • 2 inputs for optimum Spurious-Free Dynamic Range SFDR. The differential operation gives the lowest even-order harmonic components. A lower input voltage can also be selected using the internal references, further optimizing SFDR.

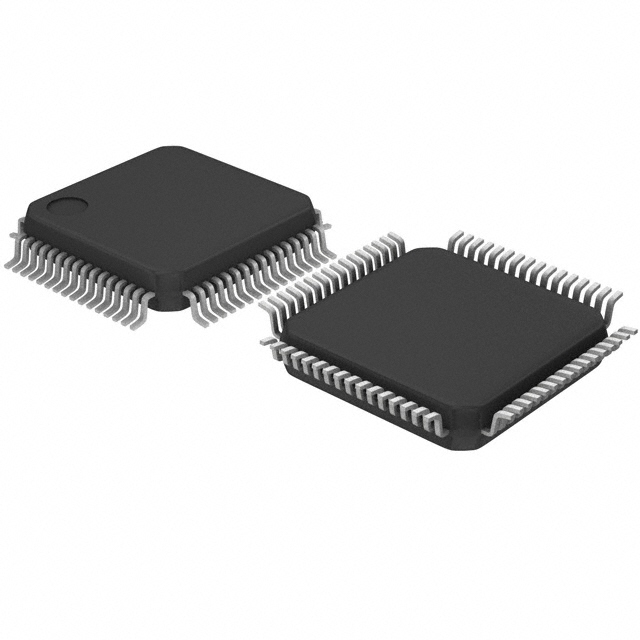

The ADS5422 is available in an LQFP-64 package.
