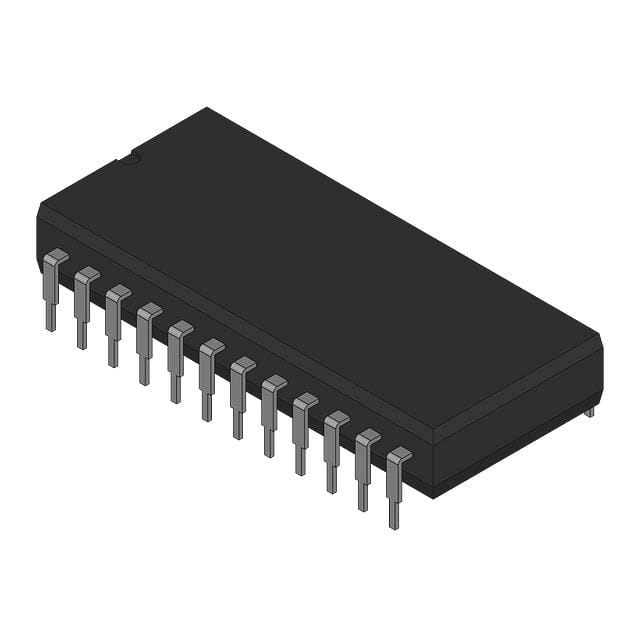

AD7228LNZ图片1

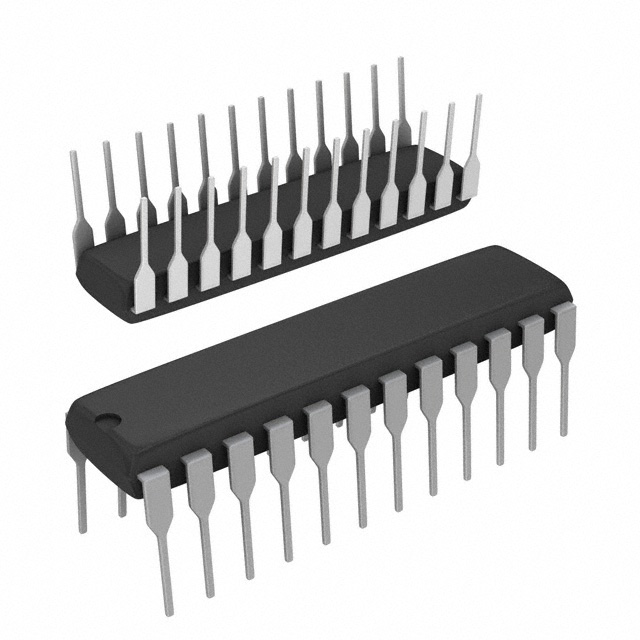

AD7228LNZ图片2

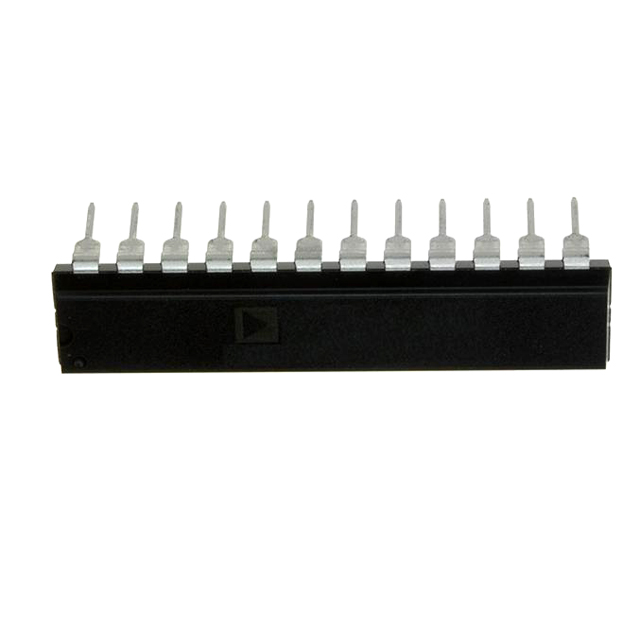

AD7228LNZ图片3
AD7228LNZ图片4
AD7228LNZ图片5
AD7228LNZ图片6
AD7228LNZ图片7
AD7228LNZ图片8
AD7228LNZ图片9
AD7228LNZ图片10
AD7228LNZ图片11
AD7228LNZ图片12
AD7228LNZ概述

ANALOG DEVICES  AD7228LNZ  数模转换器, 八路, 8 bit, 并行, 4.75V 至 5.25V, 10.8V 至 16.5V, -4.5V 至 -5.5V, DIP, 24 引脚

Product Details

The AD7228 contains eight 8-bit voltage mode digital-to-analog converters DACs, with output buffer amplifiers and interface logic on a single monolithic chip. No external trims are required to achieve the full specified performance for the device.

Separate on-chip latches are provided for each of the eight DACs. Data is transferred into the data latches through a common 8-bit, TTL/CMOS-compatible input port 5 V. The A0, A1, and A2 address inputs determine which latch is loaded when WR goes low. The control logic is speed compatible with most 8-bit microprocessors.

Specified performance is guaranteed for input reference voltages from 2 V to 10 V when using dual supplies. The device is also specified for single-supply operation using a reference of 10 V. Each output buffer amplifier is capable of developing 10 V across a 2 kΩ load.

The AD7228 is fabricated on an all ion implanted, high speed, linear-compatible CMOS LC2MOS process, specifically developed to integrate high speed digital logic circuits and precision analog circuits on the same chip.

**Product Highlights**

1. The single chip design of eight 8-bit DACs and amplifiers allows a dramatic reduction in board space requirements and offers increased reliability in systems using multiple converters. The PDIP, CERDIP, and SOIC pinout is aimed at optimizing board layout with all analog inputs and outputs at one side of the package and all digital inputs at the other.

2. The voltage mode configuration of the DACs allows single supply operation of the AD7228. The device can also be operated with dual supplies giving enhanced performance for some parameters.

3. The AD7228 has a common 8-bit data bus with individual DAC latches, providing a versatile control architecture for simple interface to microprocessors. All latch enable signals are level triggered and speed compatible with most high performance 8-bit microprocessors.

### Features and Benefits

.
Eight 8-bit DACs with output amplifiers
.
Operates with single or dual supplies
.
Microprocessor-compatible 95 ns WR pulse
.
No user trims required
.
Skinny 24-lead PDIP, CERDIP, and SOIC packages, and a 28-lead PLCC surface-mount package
AD7228LNZ中文资料参数规格
技术参数

输出接口数 8

供电电流 16.0 mA

通道数 8

针脚数 24

位数 8

耗散功率 1 W

采样率 200 ksps

分辨率Bits 8.0

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 1000 mW

数模转换数DAC 8

电源电压Max 16.5 V

电源电压Min 4.75 V

封装参数

安装方式 Through Hole

引脚数 24

封装 DIP-24

外形尺寸

高度 3.3 mm

封装 DIP-24

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

军工级 Yes

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

AD7228LNZ引脚图与封装图
AD7228LNZ引脚图
AD7228LNZ封装图
AD7228LNZ电路图
AD7228LNZ封装焊盘图
