16位80/100 MSPS ADC 16-Bit, 80/100 MSPS ADC
With this ADC from Analog Devices you will have no problem converting real world physical signals into a sequence of digital data. This device"s digital interface is parallel. This device is based on Pipelined architecture. It has a differential input signal. Its maximum power dissipation is 2800 mW. This ADC has a resolution of 16bit. This ADC has an input voltage of 2 Vp-p/3.2Vp-p. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 3.14V min
供电电流 368 mA
电路数 1
位数 16
耗散功率 2800 mW
采样率 100 Msps
分辨率Bits 16.0
输入电容 2.50 pF
输入阻抗 1.00 kΩ
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2800 mW
输入通道数 1
电源电压Max 5.25 V
电源电压Min 3.14 V
安装方式 Surface Mount
引脚数 100

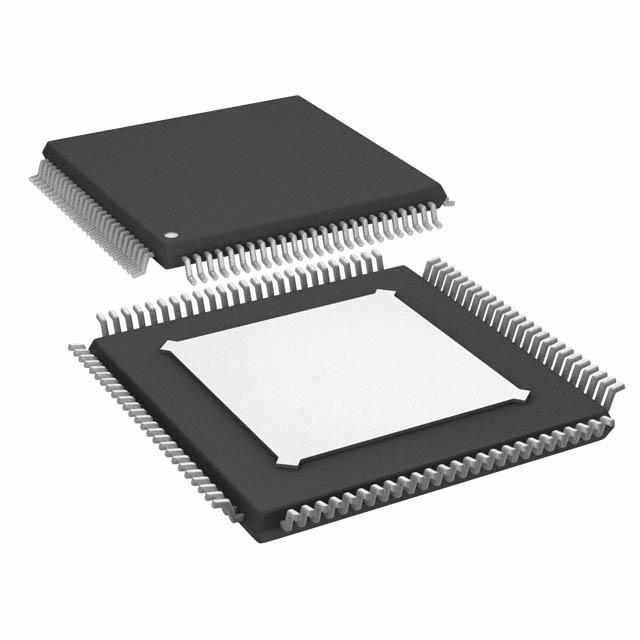

封装 TQFP-100
高度 1 mm
封装 TQFP-100
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 3A001A5A5
