AD2S82AHPZ-REEL

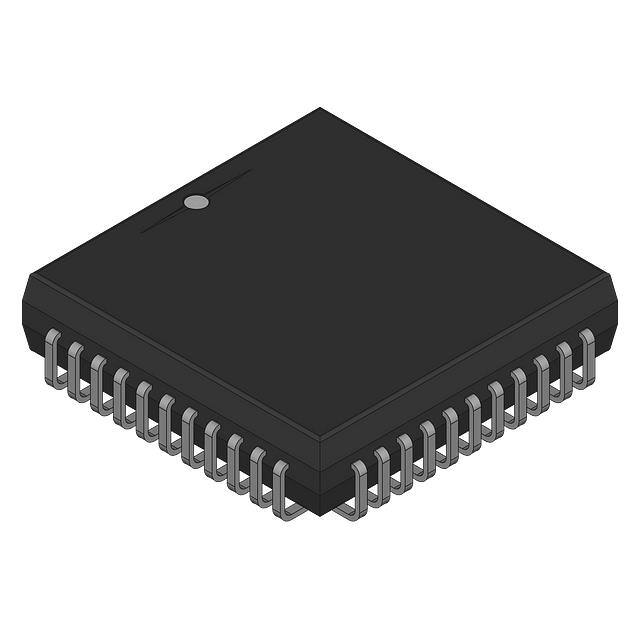

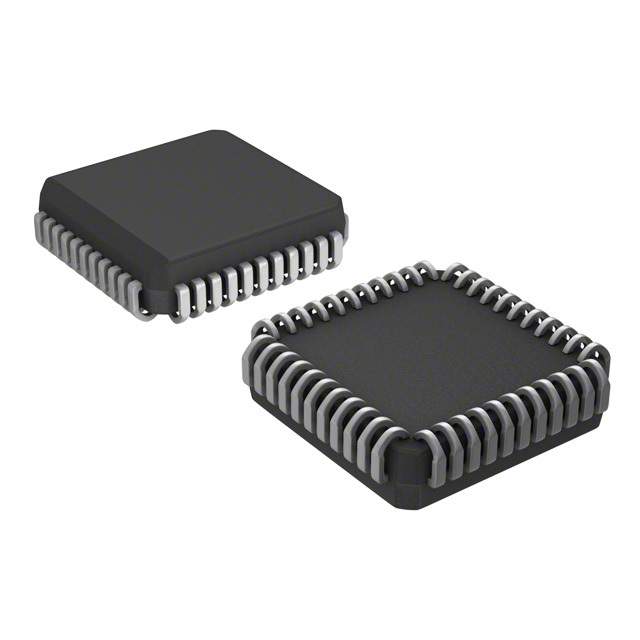

Resolver to Digital 16Bit Parallel 22arcmin 44Pin PLCC T/R

Product Details

The AD2S80A/AD2S81A/AD2S82A series are monolithic 10-, 12-, 14, or 16-bit tracking resolver-to-digital converters.

The converter allows users to select their own resolution and dynamic performance with external components. This allows the users great flexibility in defining the converter that best suits their system requirements. The converter allows users to select the resolution to be 10, 12, 14, or 16 bits [AD2S81A allows 12 bit resolution only] and to track resolver signals rotating at up to 1040 revs per second 62,400 rpm when set to 10-bit resolution.

The AD2S80A/AD2S81A/AD2S82A series converts resolver format input signals into a parallel natural binary digital word using a ratiometric tracking conversion method. This ensures high noise immunity and tolerance of long leads allowing the converter to be located remote from the resolver.

The AD2S80A/AD2S81A/AD2S82A series operates over reference frequencies in the range 50 Hz to 20,000 Hz.

### Features and Benefits

.

AD2S80A/AD2S81A/AD2S82A

.

Tracking R/D Converter

Ratiometric Conversion

High Max Tracking Rate 1040 RPS

10 Bits 10-, 12-, 14-, or

16-Bit Resolution Set by User

Dynamic Performance Set by User

Velocity Output

.

AD2S81A

12-Bit fixed resolution only

28-Lead DIP package

.

AD2S82A

VCO output

Data complement facility

44-Lead PLCC package
