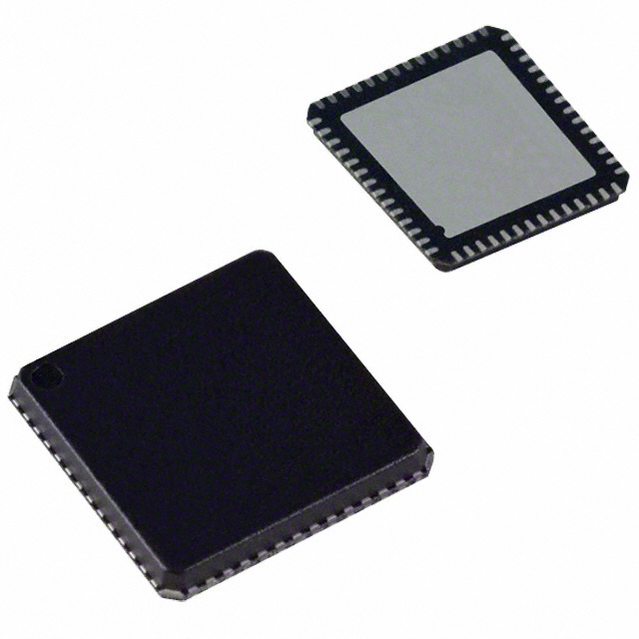

AD5372BCPZ图片1
AD5372BCPZ图片2
AD5372BCPZ图片3
AD5372BCPZ图片4
AD5372BCPZ图片5
AD5372BCPZ图片6
AD5372BCPZ图片7
AD5372BCPZ图片8
AD5372BCPZ图片9
AD5372BCPZ图片10
AD5372BCPZ概述

32通道, 16/14 ,串行输入,电压输出DAC 32-Channel, 16/14, Serial Input, Voltage-Output DACs

Product Details

The AD5372/AD5373 contain 32, 16-bit or 14-bit digital-to-analog converters DACs in a single 64-lead LQFP. The devices provide buffered voltage outputs with a nominal span of 4× the reference voltage. The gain and offset of each DAC can be inde-pendently trimmed to remove errors. For even greater flexibility, the device is divided into four groups of eight DACs. Two offset DACs allow the output range of the groups to be altered. Group 0 can be adjusted by Offset DAC 0, and Group 1 to Group 3 can be adjusted by Offset DAC 1.

The AD5372/AD5373 offer guaranteed operation over a wide supply range: VSS from −16.5 V to −4.5 V and VDD from 9 V to 16.5 V. The output amplifier headroom requirement is 1.4 V operating with a load current of 1 mA.

The ADAD5372/AD5373 have a high-speed serial inter- face, which is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards and can handle clock speeds of up to 50 MHz.

The DAC registers are updated on reception of new data. All the outputs can be updated simultaneously by taking the LDAC input low. Each channel has a programmable gain and an offset adjust register.

Each DAC output is gained and buffered on-chip with respect to an external SIGGNDx input. The DAC outputs can also be switched to SIGGNDx via the CLR pin.

**Applications**

.
Level setting in automatic test equipment ATE
.
Variable optical attenuators VOA
.
Optical switches
.
Industrial control systems
.
Instrumentation

### Features and Benefits

.
32-channel DAC in a 64-lead LQFP
.
AD5372/AD53731 guaranteed monotonic to 16/14 bits
.
Maximum output voltage span of 4 × VREF  20 V
.
Multiple, independent output voltage spans available
.
System calibration function allowing user-programmable offset and gain
.
Clear function to user-defined SIGGNDx
.
Simultaneous update of DAC outputs
.
See Data Sheet for Additional Information
AD5372BCPZ中文资料参数规格
技术参数

输出接口数 32

通道数 32

位数 16

耗散功率 250 mW

分辨率Bits 16.0

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 250 mW

数模转换数DAC 32

封装参数

安装方式 Surface Mount

引脚数 64

封装 LFCSP-56

外形尺寸

高度 0.83 mm

封装 LFCSP-56

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 End of Life

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

军工级 No

海关信息

ECCN代码 EAR99

数据手册

AD5372BCPZ引脚图与封装图
AD5372BCPZ引脚图
AD5372BCPZ封装图
AD5372BCPZ电路图
AD5372BCPZ封装焊盘图
在线购买AD5372BCPZ
型号: AD5372BCPZ
制造商: ADI 亚德诺
描述:32通道, 16/14 ,串行输入,电压输出DAC 32-Channel, 16/14, Serial Input, Voltage-Output DACs
替代型号AD5372BCPZ
型号/品牌 代替类型 替代型号对比

AD5372BCPZ

ADI 亚德诺

当前型号

当前型号

AD5372BSTZ

亚德诺

完全替代

AD5372BCPZ和AD5372BSTZ的区别

AD5372BSTZ-REEL

亚德诺

完全替代

AD5372BCPZ和AD5372BSTZ-REEL的区别

AD5372BCPZ-RL7

亚德诺

完全替代

AD5372BCPZ和AD5372BCPZ-RL7的区别
