AD5532ABC-2

32通道无限采样和保持 32-Channel Infinite Sample-and-Hold

Product Details

The AD5532 is a 32-channel bipolar voltage-output 14-bit DAC with an additional infinite sample-and-hold mode. The selected DAC register is written to via the SPI serial interface and VOUT for this DAC is then updated to reflect the new contents of the DAC register. DAC selection is accomplished via address bits A0-A4. The output voltage range is determined by the offset voltage at the OFFS_IN pin and the gain of the output amplifier. It is restricted to a range from VSS+2V to VDD-2V because of the headroom of the output amplifier.

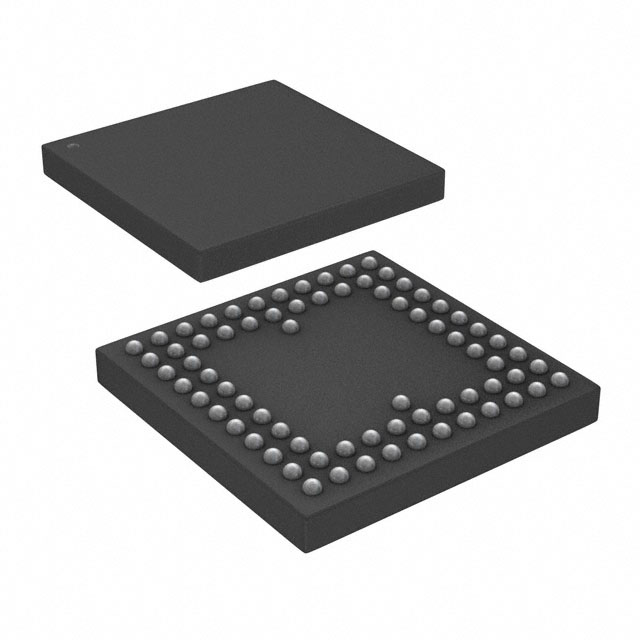

The device is operated with AVCC = +5V±5%, DVCC= 2.7V to 5.25V, VSS = -4.75V to -16.5V and VDD = 8V to 16.5V and requires a stable +3V reference on REF_IN as well as an offset voltage on OFFS_IN. It is available in a 74-lead 12mm x 12mm CSPBGA package.

Also available is the AD5533, which is specified in the sample and hold mode only and is the same part but without the DAC mode of operation.

### Features and Benefits

.

High Integration 32-channel DAC in 12 mm x 12 mm CSPBGA

.

Guaranteed Monotonic to 14 Bits

.

Infinite Sample-and-Hold Capability to ±0.018% Accuracy

.

Infinite Sample-and-Hold Total Unadjusted Error ±2.5mV

.

Adjustable Voltage Output Range

.

Readback Capability

.

DSP/Microcontroller Compatible Serial Interface

.

Output Impedance 0.5 Ω

.

Output Voltage Span 10 V

.

Temperature Range -40°C to +85°C
